ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
10000353
  • Product details
  • Technical Data
  • Downloads

ANCOR Headrest including radio communication – Professional Package (without active noise reduction)

Part number: Art. -No. 10000353
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)
ANCOR Headrest including radio communication – Professional Package (without active noise reduction)

per item €2,250.00

Prices excl. VAT plus shipping costs

out of stock, deliverable in 5 weeks

Create offer

out of stock, deliverable in 5 weeks

Product information
Country of origin Germany
Item weight 7.56 kg
Customs tariff number 85189000

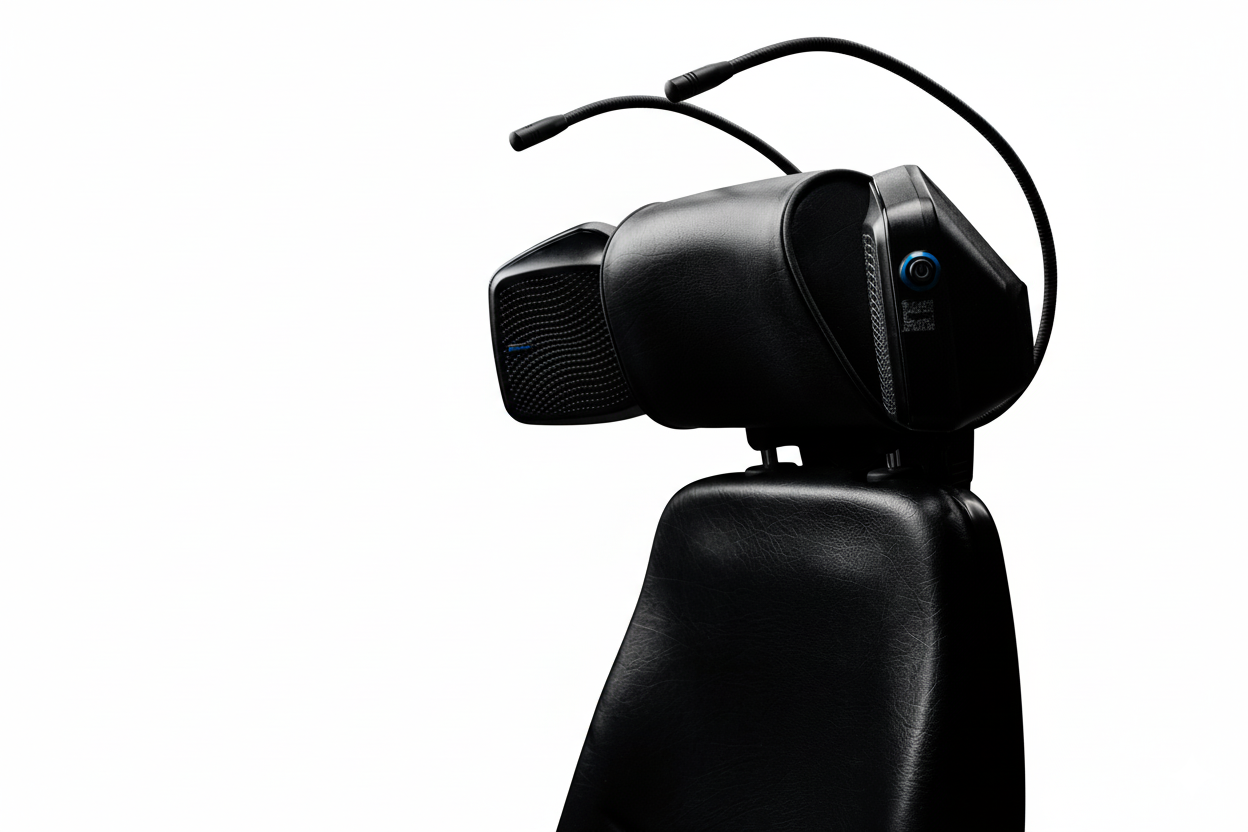

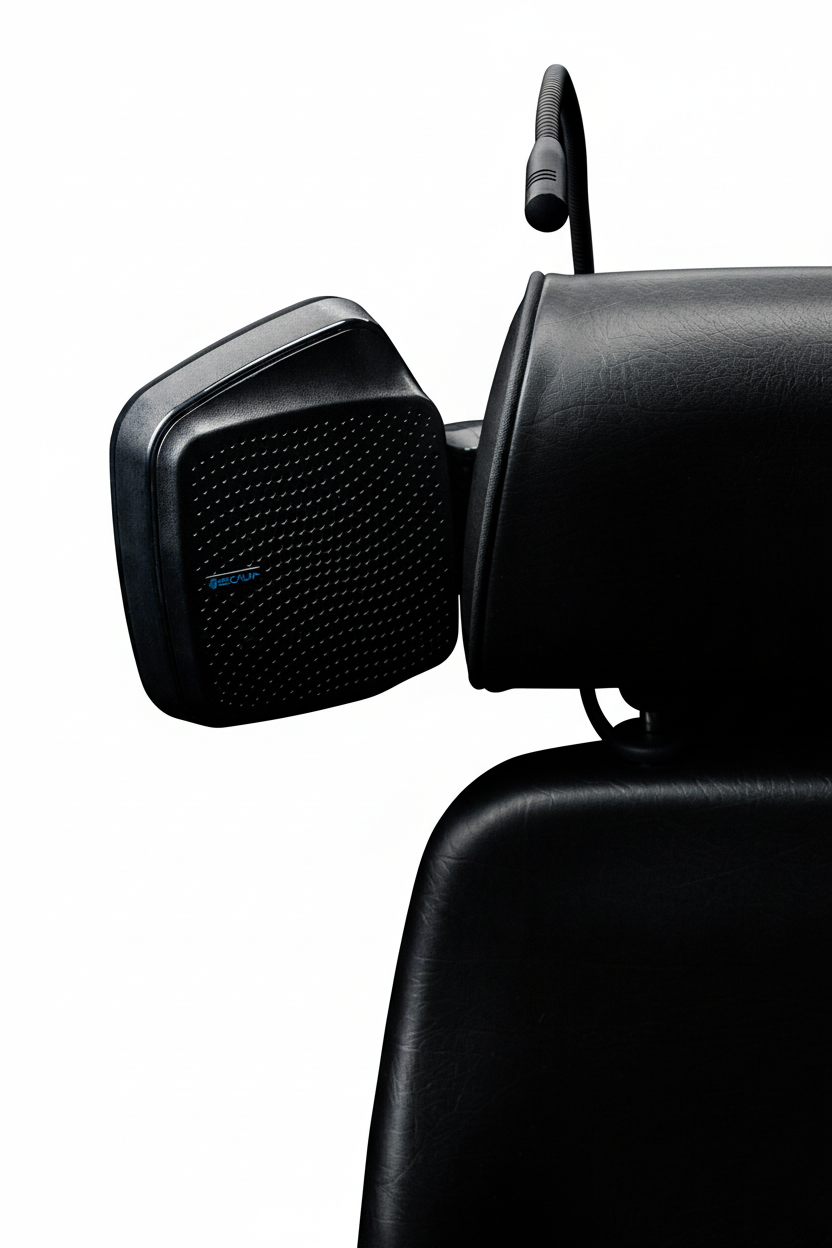

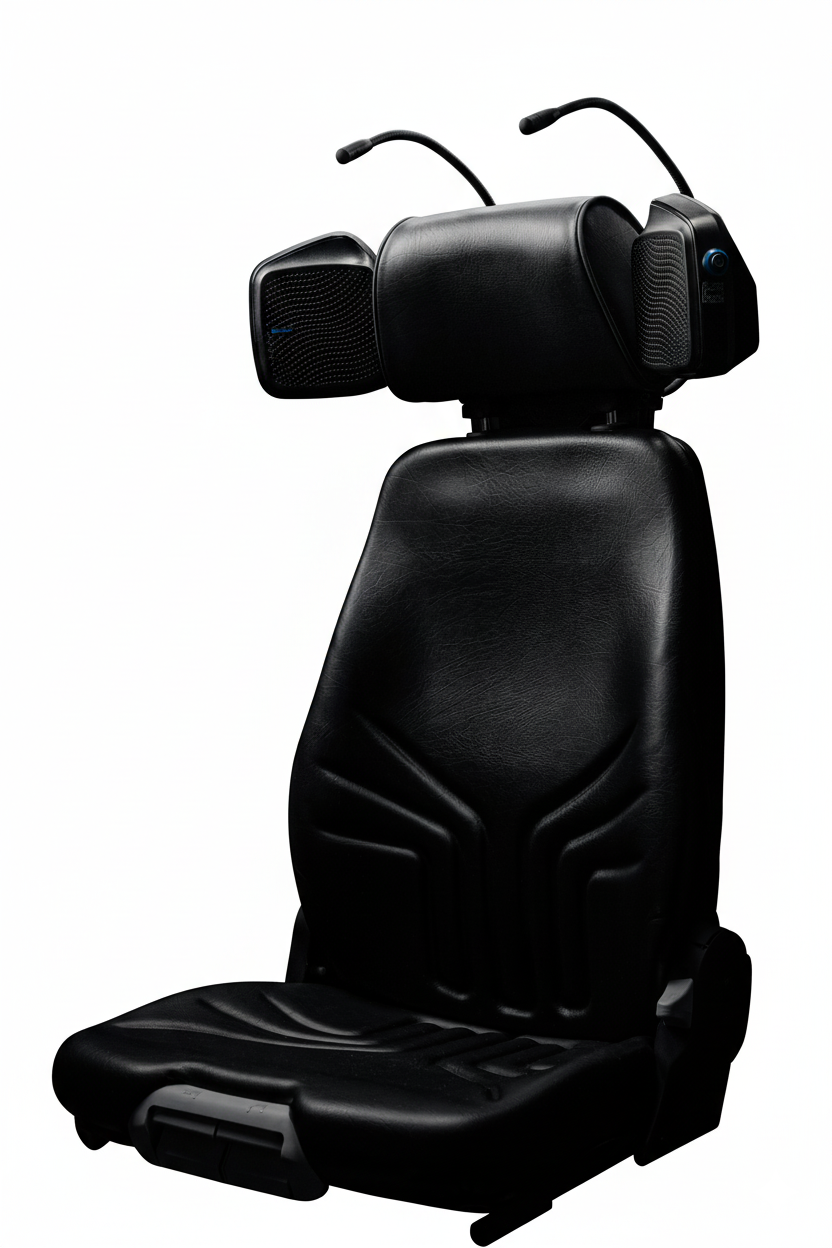

This retrofit noise-cancelling product takes comfort at the driver’s workplace to a new level.

The award-winning ANCOR headrest was developed as a flexibly adaptable system for construction, agricultural, and forestry machinery, whose operators are exposed to harmful noise on a daily basis.

Features
  • Active reduction of low-frequency noise inside the driver's cab
  • Preventive hearing protection and stress reduction for operators
  • User-friendly installation and operation
  • Adaptive software that distinguishes harmful noise from relevant ambient noise
  • Smartphone connectivity and control via Bluetooth
  • Quick and easy assembly
Technical Data
10000353
€2,250.00
Compatible handheld radios
Stabo: XM-3004e, XM-3008e, Albrecht AE 6491 ANC / AE 4200 (via Maas adapter 2089), President Martin
Motorola: DMI1400/1600
Midland: M-30, G7 Pro, MZero Plus (via Maas adapter 2219)
ICOM: IC-F1100, IC-F2100, TTI TCB-H100
Kenwood: NX-1200, NX-1300, NX-1700, NX-3220, NX-3320, TK 3501, Baofeng BF-88ST Pro / BF-88E, Radioddity PR-T6, Wouxun KG-859, TeCom-SL
Electrical data
Power consumption: 120 W
Short-circuit resistance:
Operating voltage min.: 8 V DC
Condensation protection:
Emissions 75-400 MHz, BB: 54 - 65 dB(µV/m)
Polarity reversal protection:
Emissions 30-75 MHz, BB: 64 - 54 dB(µV/m)
Emissions 400-1000 MHz, BB: 65 dB(µV/m)
Interfaces: 1x A2B, 1x CAN bus, 1x Ethernet, 1x RS232, 1x USB
Operating voltage max.: 24 V DC
Safety-related characteristics
Test pulses on supply lines acc. to ISO 16750-2:2012 - start pulse: class A
Current injection test (BCI) acc. to ISO 11452-4:2011: class A
Immunity to ESD acc. to ISO 10605:2008: class A
Test pulses on supply lines acc. to ISO 7637-2:2011 and ISO 7637-3:2007: 1:class C, 2a:class A, 2b:class C, 3a:class A, 3b:class A, a + b:class A
Test pulses on supply lines acc. to ISO 16750-2:2012 - load dump pulse: class C
Mechanical data
Dimensions: 560 x 250 x 230 mm
Weight: 3.5 kg
Environmental conditions
Vibration resistance (DIN EN 60068-2-64/-27) - random vibration: up to 2.97 g
Max. headrest rod diameter: 14 mm
Min. headrest rod diameter: 10 mm
Application frequency band: 50 to 500 Hz
Max. storage temperature: 105 °C
Max. operating temperature: 70 °C
Overtemperature shutdown: from 75 °C with 10 °C hysteresis
Max. relative humidity: 70 %
Headrest rod spacing max.: 193.5 mm
Max. headrest width: 30 cm
Vibration resistance (DIN EN 60068-2-64/-27) - shock vibration: up to 25 g
Application sound level: up to 100 dB(A)
Operating temperature min.: -40 °C
Cleanliness according to cleanroom class:
Headrest rod spacing min.: 112 mm
Min. storage temperature: -55 °C
Use in earthquake zones:
Protection class, housing: IP54
Connection
Power supply cable connection: Deutsch DT06-6S-CE 13, 6-pin
Approvals
Certified in accordance with: EMC Directive 2014/30/EU, EN ISO 13766-1:2018, EN ISO 14982:2009
10000353
€2,250.00
Compatible handheld radios
Stabo:
XM-3004e, XM-3008e, Albrecht AE 6491 ANC / AE 4200 (via Maas adapter 2089), President Martin
Motorola:
DMI1400/1600
Midland:
M-30, G7 Pro, MZero Plus (via Maas adapter 2219)
ICOM:
IC-F1100, IC-F2100, TTI TCB-H100
Kenwood:
NX-1200, NX-1300, NX-1700, NX-3220, NX-3320, TK 3501, Baofeng BF-88ST Pro / BF-88E, Radioddity PR-T6, Wouxun KG-859, TeCom-SL
Electrical data
Power consumption:
120 W
Short-circuit resistance:
Operating voltage min.:
8 V DC
Condensation protection:
Emissions 75-400 MHz, BB:
54 - 65 dB(µV/m)
Polarity reversal protection:
Emissions 30-75 MHz, BB:
64 - 54 dB(µV/m)
Emissions 400-1000 MHz, BB:
65 dB(µV/m)
Interfaces:
1x A2B, 1x CAN bus, 1x Ethernet, 1x RS232, 1x USB
Operating voltage max.:
24 V DC
Safety-related characteristics
Test pulses on supply lines acc. to ISO 16750-2:2012 - start pulse:
class A
Current injection test (BCI) acc. to ISO 11452-4:2011:
class A
Immunity to ESD acc. to ISO 10605:2008:
class A
Test pulses on supply lines acc. to ISO 7637-2:2011 and ISO 7637-3:2007:
1:class C, 2a:class A, 2b:class C, 3a:class A, 3b:class A, a + b:class A
Test pulses on supply lines acc. to ISO 16750-2:2012 - load dump pulse:
class C
Mechanical data
Dimensions:
560 x 250 x 230 mm
Weight:
3.5 kg
Environmental conditions
Vibration resistance (DIN EN 60068-2-64/-27) - random vibration:
up to 2.97 g
Max. headrest rod diameter:
14 mm
Min. headrest rod diameter:
10 mm
Application frequency band:
50 to 500 Hz
Max. storage temperature:
105 °C
Max. operating temperature:
70 °C
Overtemperature shutdown:
from 75 °C with 10 °C hysteresis
Max. relative humidity:
70 %
Headrest rod spacing max.:
193.5 mm
Max. headrest width:
30 cm
Vibration resistance (DIN EN 60068-2-64/-27) - shock vibration:
up to 25 g
Application sound level:
up to 100 dB(A)
Operating temperature min.:
-40 °C
Cleanliness according to cleanroom class:
Headrest rod spacing min.:
112 mm
Min. storage temperature:
-55 °C
Use in earthquake zones:
Protection class, housing:
IP54
Connection
Power supply cable connection:
Deutsch DT06-6S-CE 13, 6-pin
Approvals
Certified in accordance with:
EMC Directive 2014/30/EU, EN ISO 13766-1:2018, EN ISO 14982:2009

Documents and Downloads

Instructions
BG_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.9 MB
download
CZ_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
DA_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
DE_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 7 MB
download
EN_Operator_Manual_ANCOR_FINAL_2025_04_25.pdf PDF 6.9 MB
download
ES_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
ET_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
FI_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
FR_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
GR_Betriebsanleitung_ANCOR_2025_04_25.pdf PDF 2.7 MB
download
HU_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
LT_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
LV_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
NB_Operator_Manual_ANCOR_FINAL_2025_02_05.pdf PDF 2.8 MB
download
NL_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
PL_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
PT_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
RO_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
SK_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
SL_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
SV_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.3 MB
download
TR_Betriebsanleitung_ANCOR_FINAL_2025_04_25.pdf PDF 2.4 MB
download
CAD-Data
3D-Modell Headrest-19_0069V20_D_1_noise_cancelling_huell.stp STP 22.5 MB
download
Quick Start Guide
DE_A5_Schnellanleitung_ANCOR_FINAL_2025_02_05.pdf PDF 5.2 MB
download
