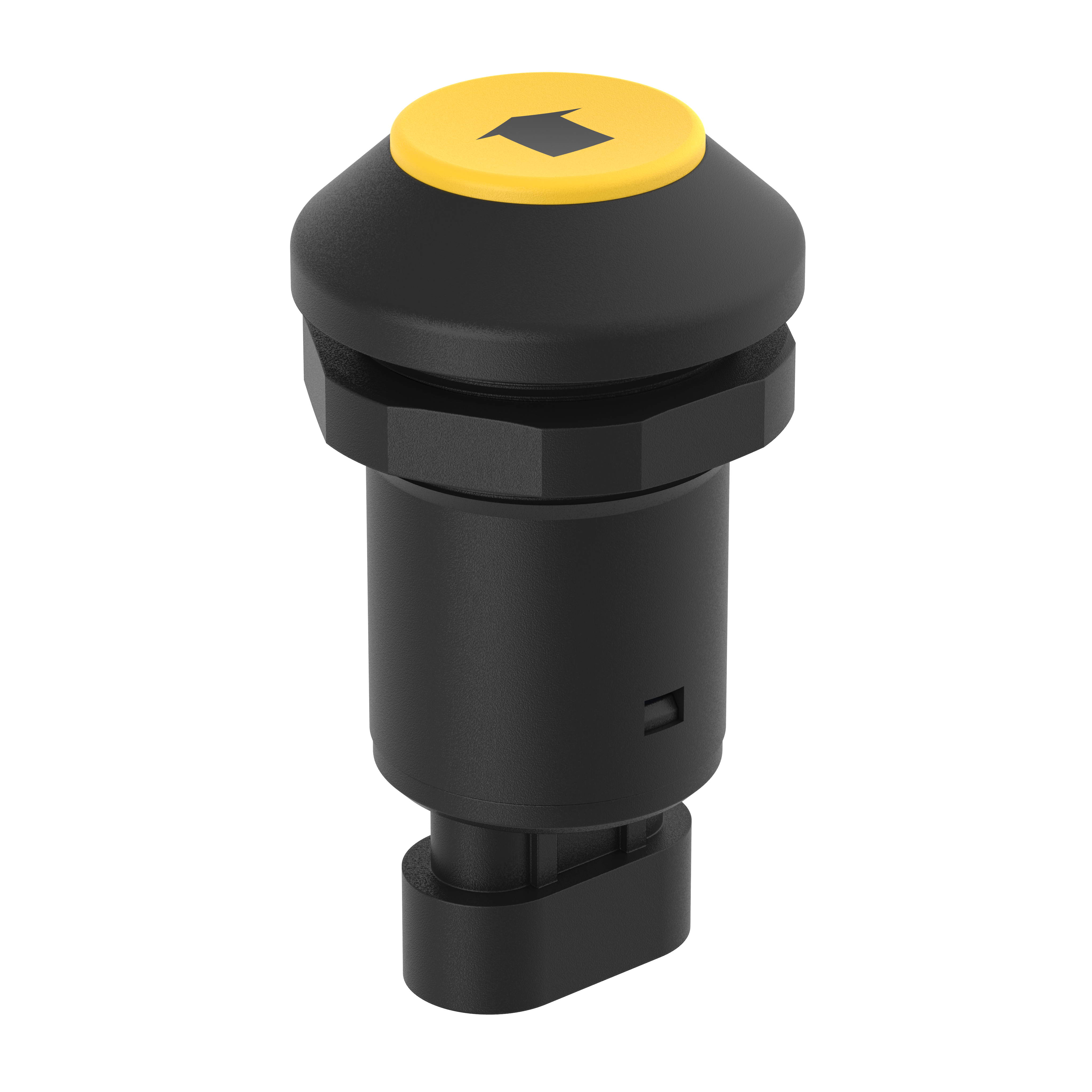

M30-Push button switch yellow - 145000AB2106 - AMP connector
M30-Push button switch yellow - 145000AB2106 - AMP connector
145000AB2106
  • Product details
  • Technical Data

M30-Push button switch yellow - 145000AB2106 - AMP connector

Part number: Art. -No. 145000AB2106

per item €43.11

Prices excl. VAT plus shipping costs

available (80 pcs.), ships within 1-3 days

Quantity Price
from 5 pcs. €40.96 - 5 %
from 10 pcs. €37.88 - 12 %
from 25 pcs. €34.10 - 21 %
from 50 pcs. €30.69 - 29 %
from 100 pcs. €27.62 - 36 %
Compare variants
Create offer

available (80 pcs.), ships within 1-3 days

Product information
Country of origin D
Item weight 0.045 kg
Customs tariff number 85365011
This robust pushbutton is designed for applications where unfavourable environmental influences prevail.

The M30 pushbutton is ideally suited for use in mobile machines, e.g. for controlling hydraulic functions. The switching element, which is completely separated from the mechanics, meets the high IP67 protection class and resists dust, dirt and moisture.
Features
  • Long service life due to magnetic actuation principle
  • Wear-free reed contacts for low switching currents
  • Developed for harsh operating conditions, high protection class IP67 electronic
  • Different push-button colours and different symbols matching the application
  • Different plug-in variants for a wide range of applications
Downloads "M30-Push button switch yellow - 145000AB2106 - AMP connector"
Technical Data
145000AB00
€41.92
145000AB10
€41.92
145000AB21
€43.11
145000AB2106
€43.11
145000AB40
€41.92
145000AB51
€41.92
145000AB60
€41.92
145000AB6006
€43.11
145000AB75
€41.92
145010AB10
€41.92
145040AB02
€60.53
145100AB01
€43.11
145105AB10
€70.80
Electrical data
Contact form: - NO NO - NO NO NO NO NO NC - NO NO
Max. switching current: - 0.5 A 0.5 A - 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A 0.5 A - 0.5 A 0.04 A
Max. switching power: 10 VA 10 VA 10 VA 10 VA 10 VA 10 VA 10 VA 10 VA 10 VA 10 VA 10 VA 10 VA 1 VA
Max. switching power: 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 10 W 1 W
Max. switching voltage: 36 V DC 48 V DC 36 V DC 48 V DC 36 V DC 48 V DC 36 V DC 48 V DC 36 V DC 48 V DC 36 V DC 48 V DC 36 V DC 48 V DC 36 V DC 36 V DC 36 V DC 36 V DC 48 V DC 36 V DC 16 V DC
Series resistor: - - - - - - - - - - - 3.9 Ohm -
Technology: - - - - - - Reed Reed Reed Reed - Reed -
Properties
Illumination: - - - - - - - - - - - - Yes
Mechanical data
Service life, mechanical (Cycles): 2000000 2000000 2000000 2000000 2000000 2000000 2000000 - - - 2000000 - 2000000
Environmental conditions
Max. operating temperature: 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C - 100 °C
Max. storage temperature: 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C 100 °C - 100 °C
Min. storage temperature: -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C - -40 °C
Operating temperature min.: -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C -20 °C - -20 °C
Protection class, electronic: IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 - - - IP67 DIN EN 60529 - IP67 DIN EN 60529
Installation
Installation: from above from above from above from above from above from above from above from above from above from above from above from above from above
Mounting type: screwed screwed screwed screwed screwed screwed screwed from below screwed screwed screwed screwed screwed screwed
Connection
Connector type: AMP-Super-Seal AMP-Superseal 3-Polig AMP-Superseal 3-Polig AMP-Super-Seal AMP-Superseal 3-Polig AMP-Superseal 3-Polig AMP-Super-Seal - - - AMP-Super-Seal - AMP-Superseal 3-Polig
145000AB00
€29.52
Electrical data
Contact form:
-
Max. switching current:
-
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC 48 V DC
Series resistor:
-
Technology:
-
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
2000000
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
AMP-Super-Seal
145000AB10
€29.52
Electrical data
Contact form:
NO
Max. switching current:
0.5 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC 48 V DC
Series resistor:
-
Technology:
-
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
2000000
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
AMP-Superseal 3-Polig
145000AB21
€30.36
Electrical data
Contact form:
NO
Max. switching current:
0.5 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC 48 V DC
Series resistor:
-
Technology:
-
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
2000000
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
AMP-Superseal 3-Polig
145000AB2106
€30.36
Electrical data
Contact form:
-
Max. switching current:
-
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC 48 V DC
Series resistor:
-
Technology:
-
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
2000000
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
AMP-Super-Seal
145000AB40
€29.52
Electrical data
Contact form:
NO
Max. switching current:
0.5 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC 48 V DC
Series resistor:
-
Technology:
-
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
2000000
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
AMP-Superseal 3-Polig
145000AB51
€29.52
Electrical data
Contact form:
NO
Max. switching current:
0.5 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC 48 V DC
Series resistor:
-
Technology:
-
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
2000000
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
AMP-Superseal 3-Polig
145000AB60
€29.52
Electrical data
Contact form:
NO
Max. switching current:
0.5 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC 48 V DC
Series resistor:
-
Technology:
Reed
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
2000000
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from above
Mounting type:
screwed from below
Connection
Connector type:
AMP-Super-Seal
145000AB6006
€30.36
Electrical data
Contact form:
NO
Max. switching current:
0.5 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC
Series resistor:
-
Technology:
Reed
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
-
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
-
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
-
145000AB75
€29.52
Electrical data
Contact form:
NO
Max. switching current:
0.5 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC
Series resistor:
-
Technology:
Reed
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
-
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
-
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
-
145010AB10
€29.52
Electrical data
Contact form:
NC
Max. switching current:
0.5 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC
Series resistor:
-
Technology:
Reed
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
-
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
-
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
-
145040AB02
€42.63
Electrical data
Contact form:
-
Max. switching current:
-
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC 48 V DC
Series resistor:
-
Technology:
-
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
2000000
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
AMP-Super-Seal
145100AB01
€30.36
Electrical data
Contact form:
NO
Max. switching current:
0.5 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
36 V DC
Series resistor:
3.9 Ohm
Technology:
Reed
Properties
Illumination:
-
Mechanical data
Service life, mechanical (Cycles):
-
Environmental conditions
Max. operating temperature:
-
Max. storage temperature:
-
Min. storage temperature:
-
Operating temperature min.:
-
Protection class, electronic:
-
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
-
145105AB10
€49.86
Electrical data
Contact form:
NO
Max. switching current:
0.04 A
Max. switching power:
1 VA
Max. switching power:
1 W
Max. switching voltage:
16 V DC
Series resistor:
-
Technology:
-
Properties
Illumination:
Yes
Mechanical data
Service life, mechanical (Cycles):
2000000
Environmental conditions
Max. operating temperature:
100 °C
Max. storage temperature:
100 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-20 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from above
Mounting type:
screwed
Connection
Connector type:
AMP-Superseal 3-Polig

Documents and Downloads

Data Sheets
Technical drawings
116 KB
download
megaphone-light Your opinion counts

We use cookies

Our website uses cookies, which help us to improve our website, to offer the best possible service and to enable an optimal customer experience. you can manage your settings. By clicking on "Accept" you consent to your cookies being used for this purpose. You can find more information on this in our Privacy Policy as well as in Imprint. If you do not agree to this, you can refuse the use of cookies here.
