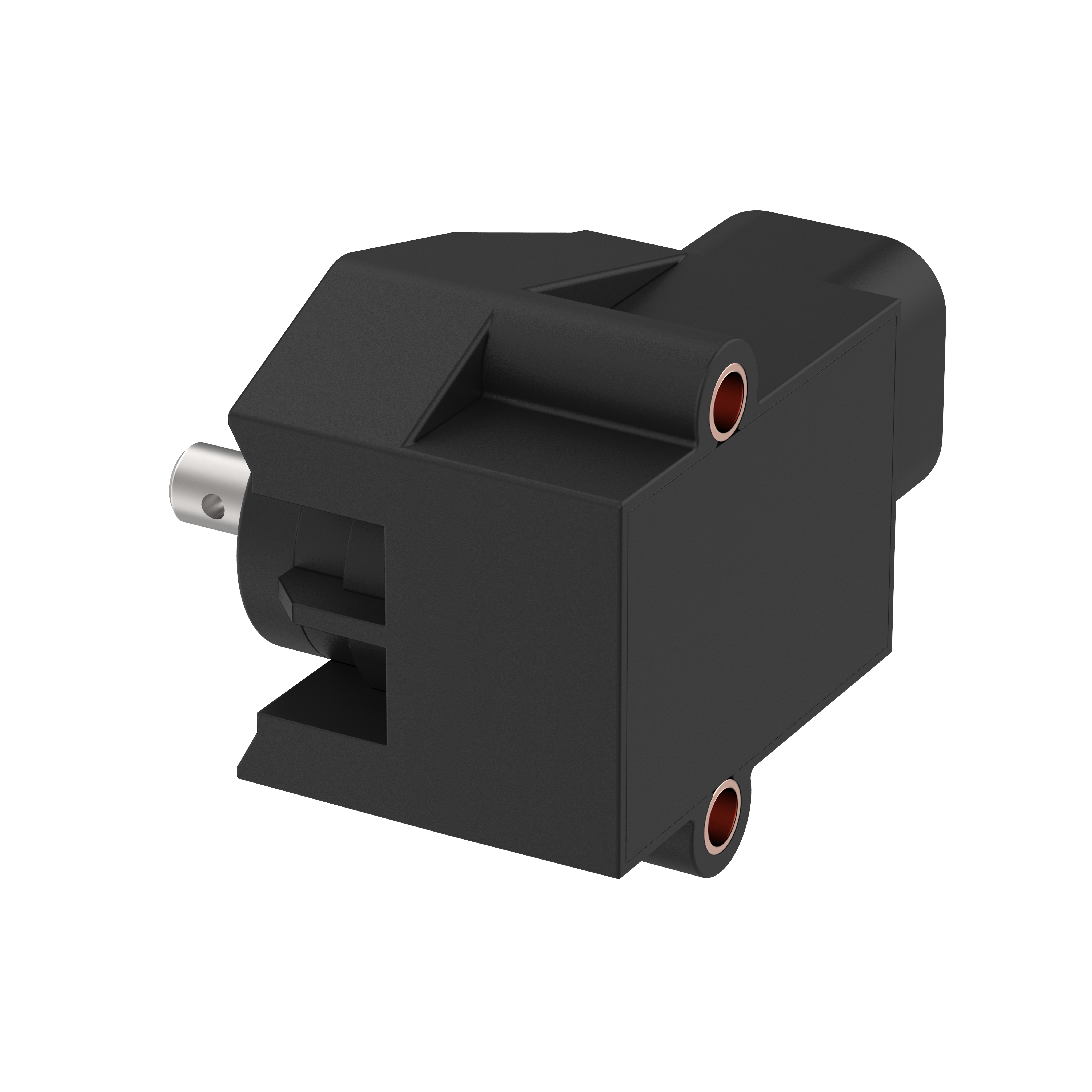

Angle Sensor CAN J1939 360° CW/CCW - 424CJ360 - 0x15 100ms 250kbit
Part number:
Art. -No.
424CJ360
per item €248.14
available (24 pcs.), ships within 1-3 days
| Quantity | Price |
|---|---|
| from 5 pcs. | €235.73 - 5 % |
| from 10 pcs. | €218.05 - 12 % |
| from 25 pcs. | €196.24 - 21 % |
| from 50 pcs. | €176.62 - 29 % |
| from 100 pcs. | €158.96 - 36 % |
| Country of origin | D |
|---|---|
| Item weight | 0.0692 kg |
| Customs tariff number | 90318020 |
Technical Data
|
424CJ360
€248.14
|
424CO360
€248.14
|
||
|
Electrical data
|
|||
| Angle measuring range: | 360 ° | 360 ° | |
|---|---|---|---|
| Baud rate: | 250 kBit/s | 250 kBit/s | |
| Bus terminating resistor: | |||
| Current consumption: | 70 mA | 70 mA | |
| EMC Agricultural and forestry machines (Norm): | EN ISO 14982<br>pulse 5b: max. voltage 56V (absolute), functional status C for pulse 1 and 4 | EN ISO 14982<br>pulse 5b: max. voltage 56V (absolute), functional status C for pulse 1 and 4 | |
| EMC Earth-moving and building construction machinery (Norm): | DIN EN ISO 13766-1<br>pulse "load dump": max. voltage 56V (absolute) | DIN EN ISO 13766-1<br>pulse "load dump": max. voltage 56V (absolute) | |
| EMC Industrial trucks (Norm): | DIN EN 12895 | DIN EN 12895 | |
| Fieldbus system: | CAN | CAN | |
| Linearity error: | < +- 1 % | < +- 1 % | |
| MTTF: | 49.3 a | 49.3 a | |
| Node ID / Source Address: | 0x15 | 0x02 | |
| Operating voltage max.: | 32 V DC | 32 V DC | |
| Operating voltage min.: | 9 V DC | 9 V DC | |
| Outputs: | CAN J1939 | CANopen | |
| Outputs (quantity, type): | 1 | 1 | |
| Polarity reversal protection: | |||
| Protocol: | J1939 | CANopen | |
| Resolution: | 0.1 ° | 0.1 ° | |
| Signal sequence: | CW/CCW | CW/CCW | |
| Signal update rate: | 10 Hz | 10 Hz | |
| Technology: | Hall | Hall | |
| Temperature coefficient: | 5.6 ppm/K | 5.6 ppm/K | |
| Transmitting cycle: | 100 ms | 100 ms | |
|
Mechanical data
|
|||
| Actuating lever: | Selectable | Selectable | |
| Max. shaft load, axial: | 50 N | 50 N | |
| Max. shaft load, radial: | 100 N | 100 N | |
| Mechanical stop: | |||
|
Material information
|
|||
| Housing material: | PBT | PBT | |
|
Environmental conditions
|
|||
| Max. operating temperature: | 85 °C | 85 °C | |
| Max. storage temperature: | 85 °C | 85 °C | |
| Min. storage temperature: | -40 °C | -40 °C | |
| Operating temperature min.: | -40 °C | -40 °C | |
| Protection class: | IP67 DIN EN 60529 | IP67 DIN EN 60529 | |
|
Installation
|
|||
| Torque for fastening screws: | 2.5 N m | 2.5 N m | |
|
Connection
|
|||
| Connector type: | Deutsch DT04-6P | Deutsch DT04-6P |
424CJ360
€436.86
Electrical data
Angle measuring range:
360 °
Baud rate:
250 kBit/s
Bus terminating resistor:
Current consumption:
70 mA
EMC Agricultural and forestry machines (Norm):
EN ISO 14982<br>pulse 5b: max. voltage 56V (absolute), functional status C for pulse 1 and 4
EMC Earth-moving and building construction machinery (Norm):
DIN EN ISO 13766-1<br>pulse "load dump": max. voltage 56V (absolute)
EMC Industrial trucks (Norm):
DIN EN 12895
Fieldbus system:
CAN
Linearity error:
< +- 1 %
MTTF:
49.3 a
Node ID / Source Address:
0x15
Operating voltage max.:
32 V DC
Operating voltage min.:
9 V DC
Outputs:
CAN J1939
Outputs (quantity, type):
1
Polarity reversal protection:
Protocol:
J1939
Resolution:
0.1 °
Signal sequence:
CW/CCW
Signal update rate:
10 Hz
Technology:
Hall
Temperature coefficient:
5.6 ppm/K
Transmitting cycle:
100 ms
Mechanical data
Actuating lever:
Selectable
Max. shaft load, axial:
50 N
Max. shaft load, radial:
100 N
Mechanical stop:
Material information
Housing material:
PBT
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-40 °C
Protection class:
IP67 DIN EN 60529
Installation
Torque for fastening screws:
2.5 N m
Connection
Connector type:
Deutsch DT04-6P
