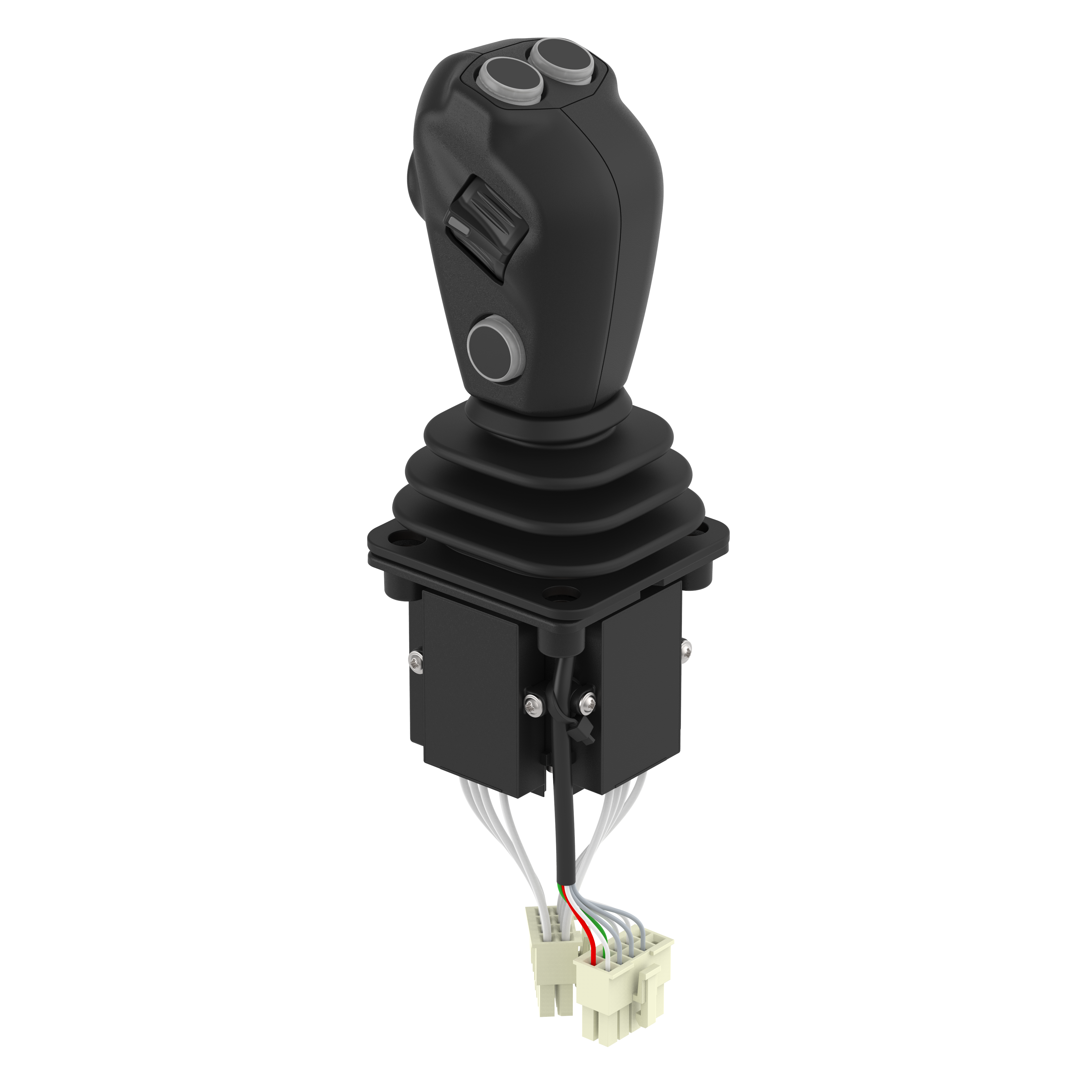

Joystick J2, multiax., X-t,Y-t Handle 4BR/TW
Part number:
Art. -No.
J2H6K00GE0002R
per item €1,152.30
available (5 pcs.), ships within 1-3 days
| Quantity | Price |
|---|---|
| from 3 pcs. | €1,037.07 - 10 % |
| from 5 pcs. | €921.84 - 20 % |
| from 10 pcs. | €806.61 - 30 % |
| from 25 pcs. | €749.00 - 35 % |
| Country of origin | D |
|---|---|
| Item weight | 0.3152 kg |
| Customs tariff number | 85371098 |
Technical Data
|
J2COK00GE0003H
€1,294.71
|
J2COK00GE0004H
€1,373.70
|
J2H6K00GE0001R
€1,073.31
|
J2H6K00GE0002R
€1,152.30
|
J2H6K10GE0001R
€1,152.30
|
||
|
Electrical data
|
||||||
| Baud rate: | 250 kBit/s | 250 kBit/s | - | - | - | |
|---|---|---|---|---|---|---|
| Bus terminating resistor: | - | - | - | |||
| Current consumption: | < 120 mA | < 120 mA | max. 15 mA | max. 15 mA | max. 15 mA | |
| EMC emission (Norm): | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | |
| EMC immunity (Norm): | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 | |
| Load resistance min.: | - | - | 20000 Ohm | 20000 Ohm | 20000 Ohm | |
| Node ID / Source Address: | 0x11 | 0x11 | - | - | - | |
| Operating voltage max.: | 36 V DC | 36 V DC | 5.5 V DC | 5.5 V DC | 5.5 V DC | |
| Operating voltage min.: | 9 V DC | 9 V DC | 4.5 V DC | 4.5 V DC | 4.5 V DC | |
| Output signal: | - | - | analogue | analogue | analogue | |
| Output signal - centre position/zero position: | - | - | 2.5 V DC | 2.5 V DC | 2.5 V DC | |
| Output signal max.: | - | - | 4.5 V DC | 4.5 V DC | 4.5 V DC | |
| Output signal min.: | - | - | 0.5 V DC | 0.5 V DC | 0.5 V DC | |
| Polarity reversal protection: | ||||||
| Protocol: | CANopen | CANopen | - | - | - | |
| Short-circuit resistance to GND: | ||||||
| Short-circuit resistance to supply: | ||||||
| Technology: | Hall | Hall | - | - | - | |
| Transmitting cycle: | 100 ms | 100 ms | - | - | - | |
|
Mechanical data
|
||||||
| Actuation type: | multi axis | multi axis | multi axis | multi axis | Crossgate | |
| Deflection: | ± 20 ° | ± 20 ° | ± 20 ° | ± 20 ° | ± 20 ° | |
| Max. lever load with specified lever length: | 70 mm/250 N | 70 mm/250 N | 70 mm/250 N | 70 mm/250 N | 70 mm/250 N | |
| Service life, mechanical (Cycles): | 1000000 | 1000000 | 1000000 | 1000000 | 1000000 | |
|
Material information
|
||||||
| Gaiter material: | VQM 45 | VQM 45 | VQM 45 | VQM 45 | VQM 45 | |
| Shaft material: | 1.4305 | 1.4305 | 1.4305 | 1.4305 | 1.4305 | |
|
Environmental conditions
|
||||||
| Max. operating temperature: | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | |
| Max. storage temperature: | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | |
| Min. storage temperature: | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | |
| Operating temperature min.: | -25 °C | -25 °C | -25 °C | -25 °C | -25 °C | |
|
Installation
|
||||||
| Installation: | from below | from below | from below | from below | from below | |
| Mounting type: | screwed from above | screwed from above | screwed from above | screwed from above | screwed from above | |
|
Connection
|
||||||
| Cable length: | 0.3 m | 0.3 m | 0.3 m | 0.3 m | 0.3 m | |
| Cable type: | CAN Kabel | CAN Kabel | Lify-t | Lify-t | Lify-t | |
| Connector type: | DEUTSCH DTM04 | DEUTSCH DTM04 | Mini-Fit Jr. | Mini-Fit Jr. | Mini-Fit Jr. |
J2COK00GE0003H
€1,294.71
Electrical data
Baud rate:
250 kBit/s
Bus terminating resistor:
Current consumption:
< 120 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
-
Node ID / Source Address:
0x11
Operating voltage max.:
36 V DC
Operating voltage min.:
9 V DC
Output signal:
-
Output signal - centre position/zero position:
-
Output signal max.:
-
Output signal min.:
-
Polarity reversal protection:
Protocol:
CANopen
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Hall
Transmitting cycle:
100 ms
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
CAN Kabel
Connector type:
DEUTSCH DTM04
J2COK00GE0004H
€1,373.70
Electrical data
Baud rate:
250 kBit/s
Bus terminating resistor:
Current consumption:
< 120 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
-
Node ID / Source Address:
0x11
Operating voltage max.:
36 V DC
Operating voltage min.:
9 V DC
Output signal:
-
Output signal - centre position/zero position:
-
Output signal max.:
-
Output signal min.:
-
Polarity reversal protection:
Protocol:
CANopen
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Hall
Transmitting cycle:
100 ms
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
CAN Kabel
Connector type:
DEUTSCH DTM04
J2H6K00GE0001R
€1,073.31
Electrical data
Baud rate:
-
Bus terminating resistor:
-
Current consumption:
max. 15 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
20000 Ohm
Node ID / Source Address:
-
Operating voltage max.:
5.5 V DC
Operating voltage min.:
4.5 V DC
Output signal:
analogue
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
4.5 V DC
Output signal min.:
0.5 V DC
Polarity reversal protection:
Protocol:
-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
-
Transmitting cycle:
-
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
Lify-t
Connector type:
Mini-Fit Jr.
J2H6K00GE0002R
€1,152.30
Electrical data
Baud rate:
-
Bus terminating resistor:
-
Current consumption:
max. 15 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
20000 Ohm
Node ID / Source Address:
-
Operating voltage max.:
5.5 V DC
Operating voltage min.:
4.5 V DC
Output signal:
analogue
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
4.5 V DC
Output signal min.:
0.5 V DC
Polarity reversal protection:
Protocol:
-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
-
Transmitting cycle:
-
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
Lify-t
Connector type:
Mini-Fit Jr.
J2H6K10GE0001R
€1,152.30
Electrical data
Baud rate:
-
Bus terminating resistor:
-
Current consumption:
max. 15 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
20000 Ohm
Node ID / Source Address:
-
Operating voltage max.:
5.5 V DC
Operating voltage min.:
4.5 V DC
Output signal:
analogue
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
4.5 V DC
Output signal min.:
0.5 V DC
Polarity reversal protection:
Protocol:
-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
-
Transmitting cycle:
-
Mechanical data
Actuation type:
Crossgate
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
Lify-t
Connector type:
Mini-Fit Jr.
