Float switch - 207KS22D - changeover, 48V, PP, compression gommet, 1m cable
Float switch - 207KS22D - changeover, 48V, PP, compression gommet, 1m cable
207KS22D
  • Product details
  • Technical Data

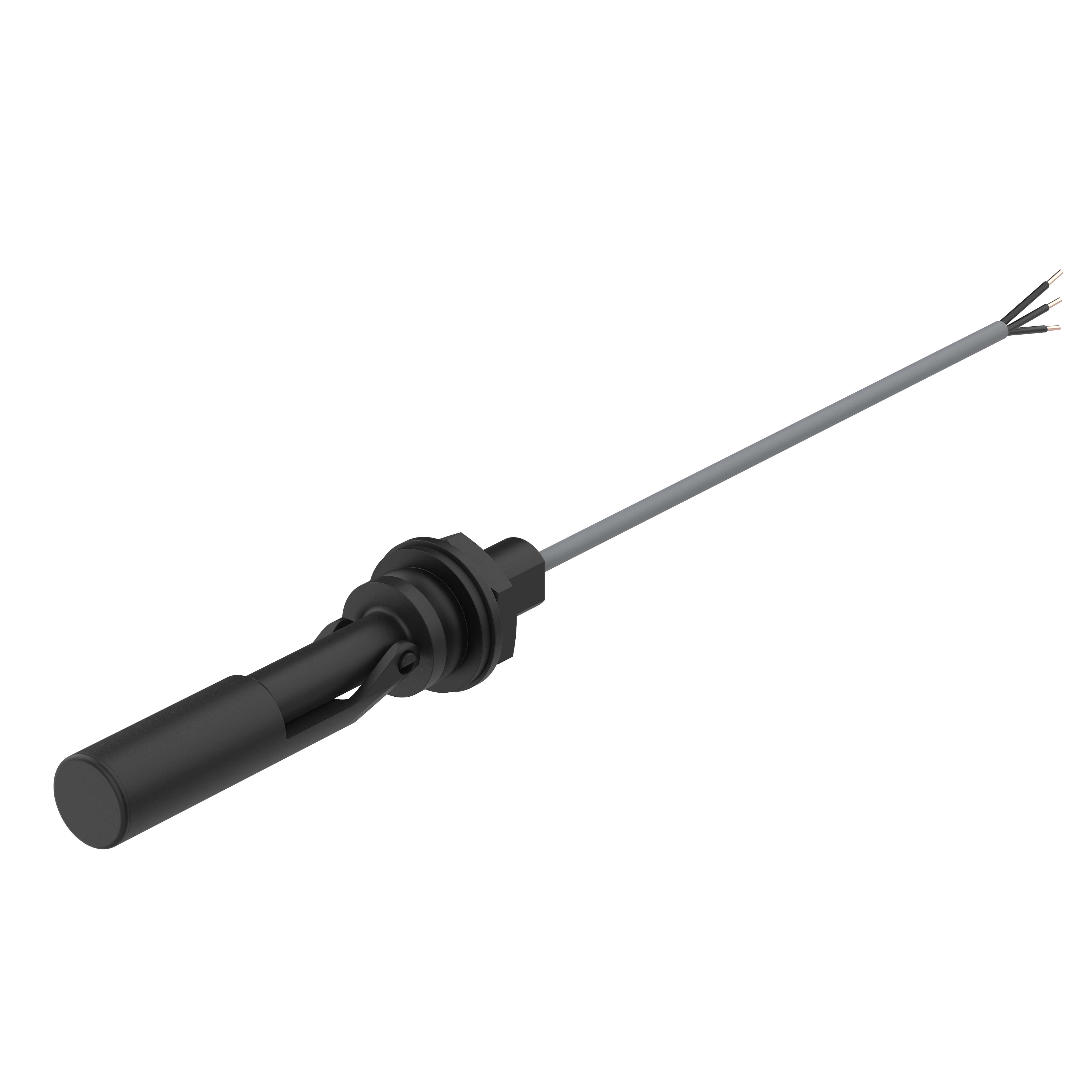

Float switch - 207KS22D - changeover, 48V, PP, compression gommet, 1m cable

Part number: Art. -No. 207KS22D

per item €56.25

Prices excl. VAT plus shipping costs

available (8 pcs.), ships within 1-3 days

Quantity Price
from 25 pcs. €50.63 - 10 %
from 50 pcs. €45.00 - 20 %
from 100 pcs. €39.38 - 30 %
Compare variants
Create offer

available (8 pcs.), ships within 1-3 days

Product information
Country of origin D
Item weight 0.05 kg
Customs tariff number 85365019
Float switches side mount from elobau are compact with horizontal installation, making them ideal for use in small containers, eg for the output of alarm messages, leakage monitoring, dry-​running and overfill protection or pump control.

A magnet located in the float moves as the liquid level rises. When a specified switching point is reached, this magnet actuates the reed contact.
Float switches side mount are wear-free and operate contactlessly and without energy through the use of reed contacts. Additionally, they are maintenance free and easy to install, ensuring cost-​effective commissioning and operations.

Features
  • Long service life through wear-free reed contact technology
  • Three different designs for various requirements and applications
  • Several materials for use in almost all liquids
  • Lateral as well as space-​saving installation
  • N.O./N.C selectable as well as changeover contact
  • Reed contacts with high switching power
  • Various process connections offer flexibility
  • Choose from cable outlet, pigtail, or M12 connector
Downloads "Float switch - 207KS22D - changeover, 48V, PP, compression gommet, 1m cable"
Technical Data
207KS12D
€41.19
207KS12N
€29.82
207KS14D
€49.68
207KS14N05
€66.60
207KS14N09
€66.60
207KS22D
€56.25
207KS22D01
€65.46
207KS22N
€38.37
207KS24N
€53.40
Electrical data
Contact form: 1A or 1B 1A or 1B 1A or 1B 1A or 1B 1A or 1B 1C ? 1C 1C
Max. switching current: 1 A 1 A 1 A 1 A 1 A 0.25 A 0.25 A 0.25 A 0.25 A
Max. switching power: 50 W 50 W 50 W 50 W 50 W 3 W 3 W 3 W 3 W
Max. switching voltage: 250 V DC 250 V DC 250 V DC 250 V DC 250 V DC 48 V DC 48 V DC 48 V DC 48 V DC
Max. switching voltage: 250 V AC 250 V AC 250 V AC 250 V AC 250 V AC 48 V AC 48 V AC 48 V AC 48 V AC
Output signal: digital digital digital digital digital digital digital digital digital
Technology: Reed Reed Reed Reed Reed Reed Reed Reed Reed
Mechanical data
Float diameter: 17 mm 17 mm 17 mm 17 mm - 17 mm - 17 mm 17 mm
Version: Mechanical hinge Mechanical hinge Mechanical hinge Mechanical hinge Mechanical hinge Mechanical hinge Mechanical hinge Mechanical hinge Mechanical hinge
Material information
Cable material: PVC PVC PVC - - PVC PUR PVC PVC
Float material: PP PP PA12 PA12 PA PP PP PP PA12
Housing material: PP PP PA12 PA12 PA PP PP PP PA12
Environmental conditions
Max. operating temperature: 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C
Operating temperature min.: -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C
Pressure resistance: 3 bar 3 bar 3 bar 3 bar - 3 bar - 3 bar 3 bar
Protection class inside container: IP68 DIN EN 60529 IP68 DIN EN 60529 IP68 DIN EN 60529 IP68 DIN EN 60529 IP68 DIN EN 60529 IP68 DIN EN 60529 IP68 DIN EN 60529 IP68 DIN EN 60529 IP68 DIN EN 60529
Protection class outside container: IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529
Installation
Installation opening: D22-23 G 1/2 - 14NPT D22-23 G 1/2 - 14NPT - D22-23 - G 1/2 - 14NPT G 1/2 - 14NPT
Mounting type: Compression grommet Thread Compression grommet Thread screwed Compression grommet Compression grommet Thread Thread
Thread: - G 1/2 - 14NPT - G 1/2 - 14NPT G 1/2 - 14NPT - M16x2 G 1/2 - 14NPT G 1/2 - 14NPT
Connection
Cable length: 1 m 1 m 1 m - - 1 m 5 m 1 m 1 m
Connector type: - - - M12 M12x1 - - - -
207KS12D
€41.19
Electrical data
Contact form:
1A or 1B
Max. switching current:
1 A
Max. switching power:
50 W
Max. switching voltage:
250 V DC
Max. switching voltage:
250 V AC
Output signal:
digital
Technology:
Reed
Mechanical data
Float diameter:
17 mm
Version:
Mechanical hinge
Material information
Cable material:
PVC
Float material:
PP
Housing material:
PP
Environmental conditions
Max. operating temperature:
105 °C
Operating temperature min.:
-25 °C
Pressure resistance:
3 bar
Protection class inside container:
IP68 DIN EN 60529
Protection class outside container:
IP67 DIN EN 60529
Installation
Installation opening:
D22-23
Mounting type:
Compression grommet
Thread:
-
Connection
Cable length:
1 m
Connector type:
-
207KS12N
€29.82
Electrical data
Contact form:
1A or 1B
Max. switching current:
1 A
Max. switching power:
50 W
Max. switching voltage:
250 V DC
Max. switching voltage:
250 V AC
Output signal:
digital
Technology:
Reed
Mechanical data
Float diameter:
17 mm
Version:
Mechanical hinge
Material information
Cable material:
PVC
Float material:
PP
Housing material:
PP
Environmental conditions
Max. operating temperature:
105 °C
Operating temperature min.:
-25 °C
Pressure resistance:
3 bar
Protection class inside container:
IP68 DIN EN 60529
Protection class outside container:
IP67 DIN EN 60529
Installation
Installation opening:
G 1/2 - 14NPT
Mounting type:
Thread
Thread:
G 1/2 - 14NPT
Connection
Cable length:
1 m
Connector type:
-
207KS14D
€49.68
Electrical data
Contact form:
1A or 1B
Max. switching current:
1 A
Max. switching power:
50 W
Max. switching voltage:
250 V DC
Max. switching voltage:
250 V AC
Output signal:
digital
Technology:
Reed
Mechanical data
Float diameter:
17 mm
Version:
Mechanical hinge
Material information
Cable material:
PVC
Float material:
PA12
Housing material:
PA12
Environmental conditions
Max. operating temperature:
105 °C
Operating temperature min.:
-25 °C
Pressure resistance:
3 bar
Protection class inside container:
IP68 DIN EN 60529
Protection class outside container:
IP67 DIN EN 60529
Installation
Installation opening:
D22-23
Mounting type:
Compression grommet
Thread:
-
Connection
Cable length:
1 m
Connector type:
-
207KS14N05
€66.60
Electrical data
Contact form:
1A or 1B
Max. switching current:
1 A
Max. switching power:
50 W
Max. switching voltage:
250 V DC
Max. switching voltage:
250 V AC
Output signal:
digital
Technology:
Reed
Mechanical data
Float diameter:
17 mm
Version:
Mechanical hinge
Material information
Cable material:
-
Float material:
PA12
Housing material:
PA12
Environmental conditions
Max. operating temperature:
105 °C
Operating temperature min.:
-25 °C
Pressure resistance:
3 bar
Protection class inside container:
IP68 DIN EN 60529
Protection class outside container:
IP67 DIN EN 60529
Installation
Installation opening:
G 1/2 - 14NPT
Mounting type:
Thread
Thread:
G 1/2 - 14NPT
Connection
Cable length:
-
Connector type:
M12
207KS14N09
€66.60
Electrical data
Contact form:
1A or 1B
Max. switching current:
1 A
Max. switching power:
50 W
Max. switching voltage:
250 V DC
Max. switching voltage:
250 V AC
Output signal:
digital
Technology:
Reed
Mechanical data
Float diameter:
-
Version:
Mechanical hinge
Material information
Cable material:
-
Float material:
PA
Housing material:
PA
Environmental conditions
Max. operating temperature:
105 °C
Operating temperature min.:
-25 °C
Pressure resistance:
-
Protection class inside container:
IP68 DIN EN 60529
Protection class outside container:
IP67 DIN EN 60529
Installation
Installation opening:
-
Mounting type:
screwed
Thread:
G 1/2 - 14NPT
Connection
Cable length:
-
Connector type:
M12x1
207KS22D
€56.25
Electrical data
Contact form:
1C
Max. switching current:
0.25 A
Max. switching power:
3 W
Max. switching voltage:
48 V DC
Max. switching voltage:
48 V AC
Output signal:
digital
Technology:
Reed
Mechanical data
Float diameter:
17 mm
Version:
Mechanical hinge
Material information
Cable material:
PVC
Float material:
PP
Housing material:
PP
Environmental conditions
Max. operating temperature:
105 °C
Operating temperature min.:
-25 °C
Pressure resistance:
3 bar
Protection class inside container:
IP68 DIN EN 60529
Protection class outside container:
IP67 DIN EN 60529
Installation
Installation opening:
D22-23
Mounting type:
Compression grommet
Thread:
-
Connection
Cable length:
1 m
Connector type:
-
207KS22D01
€65.46
Electrical data
Contact form:
?
Max. switching current:
0.25 A
Max. switching power:
3 W
Max. switching voltage:
48 V DC
Max. switching voltage:
48 V AC
Output signal:
digital
Technology:
Reed
Mechanical data
Float diameter:
-
Version:
Mechanical hinge
Material information
Cable material:
PUR
Float material:
PP
Housing material:
PP
Environmental conditions
Max. operating temperature:
105 °C
Operating temperature min.:
-25 °C
Pressure resistance:
-
Protection class inside container:
IP68 DIN EN 60529
Protection class outside container:
IP67 DIN EN 60529
Installation
Installation opening:
-
Mounting type:
Compression grommet
Thread:
M16x2
Connection
Cable length:
5 m
Connector type:
-
207KS22N
€38.37
Electrical data
Contact form:
1C
Max. switching current:
0.25 A
Max. switching power:
3 W
Max. switching voltage:
48 V DC
Max. switching voltage:
48 V AC
Output signal:
digital
Technology:
Reed
Mechanical data
Float diameter:
17 mm
Version:
Mechanical hinge
Material information
Cable material:
PVC
Float material:
PP
Housing material:
PP
Environmental conditions
Max. operating temperature:
105 °C
Operating temperature min.:
-25 °C
Pressure resistance:
3 bar
Protection class inside container:
IP68 DIN EN 60529
Protection class outside container:
IP67 DIN EN 60529
Installation
Installation opening:
G 1/2 - 14NPT
Mounting type:
Thread
Thread:
G 1/2 - 14NPT
Connection
Cable length:
1 m
Connector type:
-
207KS24N
€53.40
Electrical data
Contact form:
1C
Max. switching current:
0.25 A
Max. switching power:
3 W
Max. switching voltage:
48 V DC
Max. switching voltage:
48 V AC
Output signal:
digital
Technology:
Reed
Mechanical data
Float diameter:
17 mm
Version:
Mechanical hinge
Material information
Cable material:
PVC
Float material:
PA12
Housing material:
PA12
Environmental conditions
Max. operating temperature:
105 °C
Operating temperature min.:
-25 °C
Pressure resistance:
3 bar
Protection class inside container:
IP68 DIN EN 60529
Protection class outside container:
IP67 DIN EN 60529
Installation
Installation opening:
G 1/2 - 14NPT
Mounting type:
Thread
Thread:
G 1/2 - 14NPT
Connection
Cable length:
1 m
Connector type:
-

Documents and Downloads

Instructions
Instruction for use 1
426 KB
download
Instruction for use 2
1.3 MB
download
Data sheets
Technical drawings
110 KB
download
