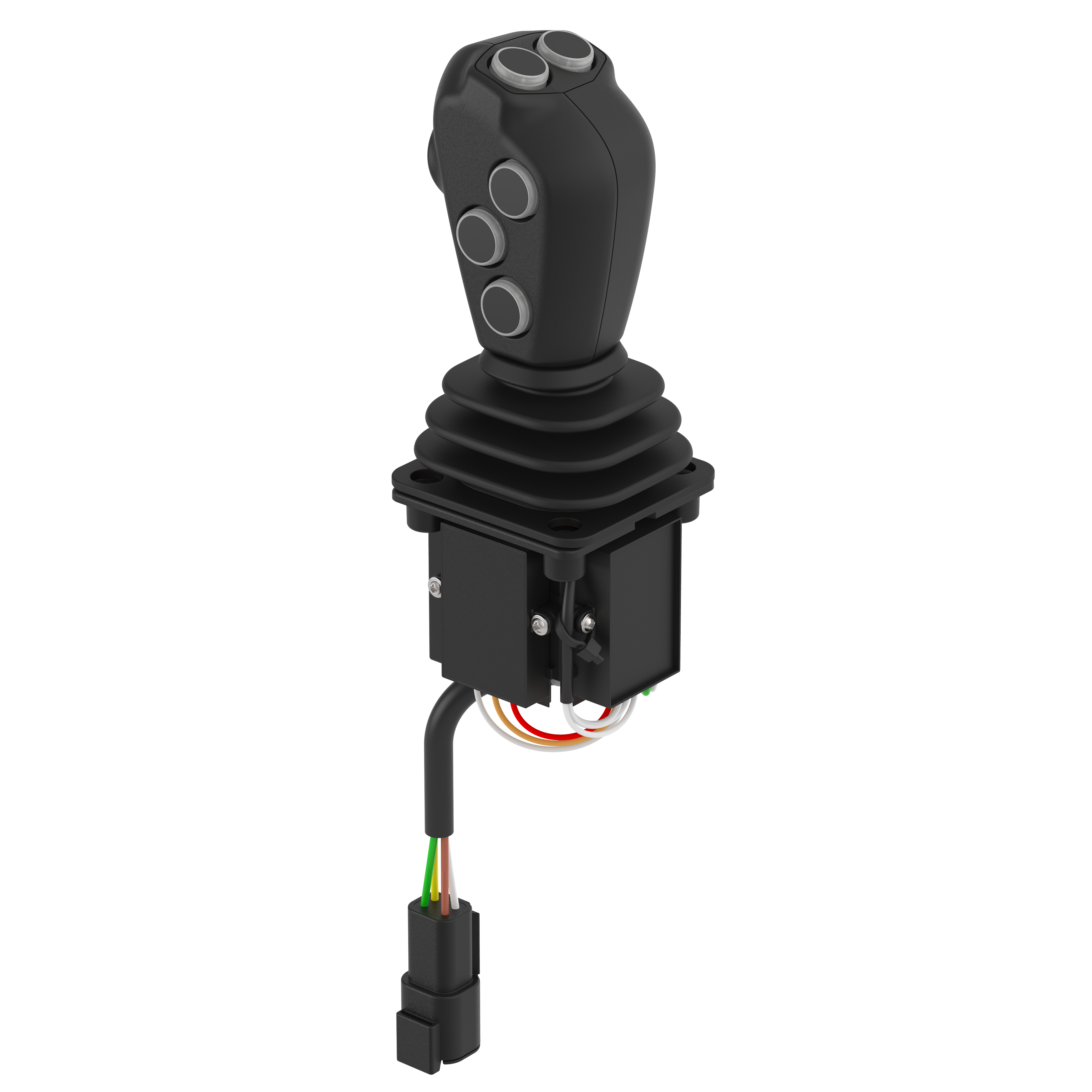

Joystick J2, multiax., X-t,Y-t Handle 6BH, CANopen

Part number: Art. -No. J2COK00GE0003H

per item €1,294.71

Prices excl. VAT plus shipping costs

available (6 pcs.), ships within 1-3 days

Quantity Price
from 3 pcs. €1,165.24 - 10 %
from 5 pcs. €1,035.77 - 20 %
from 10 pcs. €906.30 - 30 %
from 25 pcs. €841.56 - 35 %
Compare variants
Create offer

available (6 pcs.), ships within 1-3 days

Country of origin D
Item weight 0.32 kg
Customs tariff number 85371098
Technical Data
J2COK00GE0003H
€1,294.71
J2COK00GE0004H
€1,373.70
J2H6K00GE0001R
€1,073.31
J2H6K00GE0002R
€1,152.30
J2H6K10GE0001R
€1,152.30
Electrical data
Baud rate: 250 kBit/s 250 kBit/s - - -
Bus terminating resistor: - - -
Current consumption: < 120 mA < 120 mA max. 15 mA max. 15 mA max. 15 mA
EMC emission (Norm): DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm): DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.: - - 20000 Ohm 20000 Ohm 20000 Ohm
Node ID / Source Address: 0x11 0x11 - - -
Operating voltage max.: 36 V DC 36 V DC 5.5 V DC 5.5 V DC 5.5 V DC
Operating voltage min.: 9 V DC 9 V DC 4.5 V DC 4.5 V DC 4.5 V DC
Output signal: - - analogue analogue analogue
Output signal - centre position/zero position: - - 2.5 V DC 2.5 V DC 2.5 V DC
Output signal max.: - - 4.5 V DC 4.5 V DC 4.5 V DC
Output signal min.: - - 0.5 V DC 0.5 V DC 0.5 V DC
Polarity reversal protection:
Protocol: CANopen CANopen - - -
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology: Hall Hall - - -
Transmitting cycle: 100 ms 100 ms - - -
Mechanical data
Actuation type: multi axis multi axis multi axis multi axis Crossgate
Deflection: ± 20 ° ± 20 ° ± 20 ° ± 20 ° ± 20 °
Max. lever load with specified lever length: 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N
Service life, mechanical (Cycles): 1000000 1000000 1000000 1000000 1000000
Material information
Gaiter material: VQM 45 VQM 45 VQM 45 VQM 45 VQM 45
Shaft material: 1.4305 1.4305 1.4305 1.4305 1.4305
Environmental conditions
Max. operating temperature: 85 °C 85 °C 85 °C 85 °C 85 °C
Max. storage temperature: 85 °C 85 °C 85 °C 85 °C 85 °C
Min. storage temperature: -40 °C -40 °C -40 °C -40 °C -40 °C
Operating temperature min.: -25 °C -25 °C -25 °C -25 °C -25 °C
Installation
Installation: from below from below from below from below from below
Mounting type: screwed from above screwed from above screwed from above screwed from above screwed from above
Connection
Cable length: 0.3 m 0.3 m 0.3 m 0.3 m 0.3 m
Cable type: CAN Kabel CAN Kabel Lify-t Lify-t Lify-t
Connector type: DEUTSCH DTM04 DEUTSCH DTM04 Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr.
J2COK00GE0003H
€1,294.71
Electrical data
Baud rate:
250 kBit/s
Bus terminating resistor:
Current consumption:
< 120 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
-
Node ID / Source Address:
0x11
Operating voltage max.:
36 V DC
Operating voltage min.:
9 V DC
Output signal:
-
Output signal - centre position/zero position:
-
Output signal max.:
-
Output signal min.:
-
Polarity reversal protection:
Protocol:
CANopen
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Hall
Transmitting cycle:
100 ms
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
CAN Kabel
Connector type:
DEUTSCH DTM04
J2COK00GE0004H
€1,373.70
Electrical data
Baud rate:
250 kBit/s
Bus terminating resistor:
Current consumption:
< 120 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
-
Node ID / Source Address:
0x11
Operating voltage max.:
36 V DC
Operating voltage min.:
9 V DC
Output signal:
-
Output signal - centre position/zero position:
-
Output signal max.:
-
Output signal min.:
-
Polarity reversal protection:
Protocol:
CANopen
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Hall
Transmitting cycle:
100 ms
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
CAN Kabel
Connector type:
DEUTSCH DTM04
J2H6K00GE0001R
€1,073.31
Electrical data
Baud rate:
-
Bus terminating resistor:
-
Current consumption:
max. 15 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
20000 Ohm
Node ID / Source Address:
-
Operating voltage max.:
5.5 V DC
Operating voltage min.:
4.5 V DC
Output signal:
analogue
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
4.5 V DC
Output signal min.:
0.5 V DC
Polarity reversal protection:
Protocol:
-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
-
Transmitting cycle:
-
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
Lify-t
Connector type:
Mini-Fit Jr.
J2H6K00GE0002R
€1,152.30
Electrical data
Baud rate:
-
Bus terminating resistor:
-
Current consumption:
max. 15 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
20000 Ohm
Node ID / Source Address:
-
Operating voltage max.:
5.5 V DC
Operating voltage min.:
4.5 V DC
Output signal:
analogue
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
4.5 V DC
Output signal min.:
0.5 V DC
Polarity reversal protection:
Protocol:
-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
-
Transmitting cycle:
-
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
Lify-t
Connector type:
Mini-Fit Jr.
J2H6K10GE0001R
€1,152.30
Electrical data
Baud rate:
-
Bus terminating resistor:
-
Current consumption:
max. 15 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:
20000 Ohm
Node ID / Source Address:
-
Operating voltage max.:
5.5 V DC
Operating voltage min.:
4.5 V DC
Output signal:
analogue
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
4.5 V DC
Output signal min.:
0.5 V DC
Polarity reversal protection:
Protocol:
-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
-
Transmitting cycle:
-
Mechanical data
Actuation type:
Crossgate
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
VQM 45
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Cable type:
Lify-t
Connector type:
Mini-Fit Jr.
