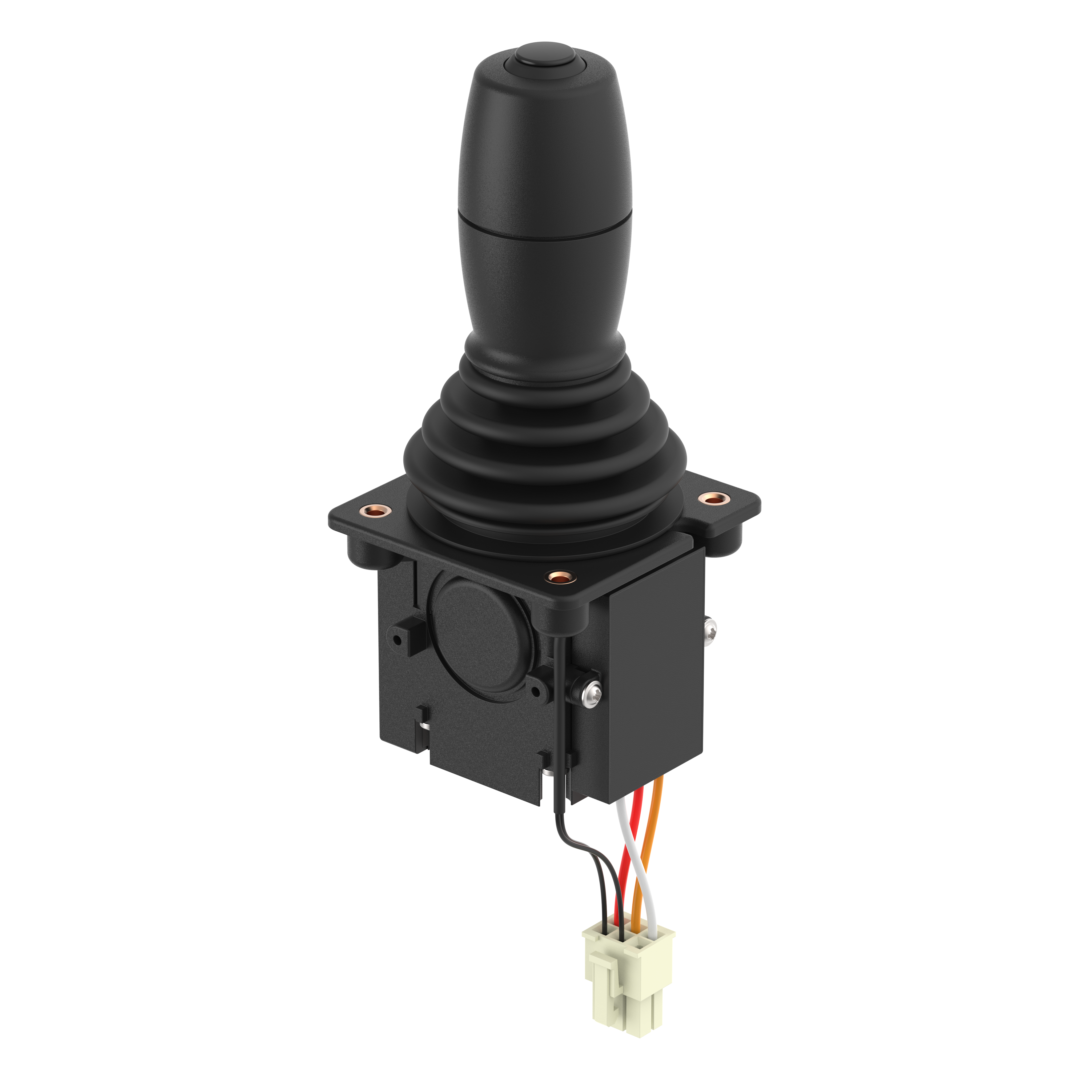

Joystick Analog 4-20mA s. ax. EMV 200V/m,spring return

Part number: Art. -No. J2A1AA20B

per item €282.95

Prices excl. VAT plus shipping costs

available (6 pcs.), ships within 1-3 days

Quantity Price
from 6 pcs. €268.80 - 5 %
from 12 pcs. €248.64 - 12 %
from 24 pcs. €223.78 - 21 %
from 48 pcs. €201.40 - 29 %
from 96 pcs. €181.26 - 36 %
Compare variants
Create offer

available (6 pcs.), ships within 1-3 days

This article will not be reordered - LAST ORDER CHANCE!

Product information
Country of origin D
Item weight 0.2 kg
Customs tariff number 85371098
The J2 compact joystick is successfully used in tractors for front loader control or in industrial trucks for fork control. Pushbuttons that can be integrated into the handle enable the operation of additional functions.
Features
  • Space-​saving design
  • High reliability and service life through contactless Hall or reed technology
  • Different output signals possible: analog, redundant, CAN bus connection (CANopen / SAE J1939) or with switching output
  • IP67 protection class of electronics, ideal for harsh environmental conditions
  • Deflection ±20°
  • Available with different actuation types such as no detent / latching or center position latching
  • With up to 3 pushbuttons, mounting from below
Technical Data
J2A1AA20A
€248.42
J2A1AA20B
€282.95
J2A1AAA10B
€336.55
J2A6AAA00B
€281.88
J2A6AAA00C
€350.92
J2A7AAA00B
€336.55
J2A7AAA00C
€405.61
J2A7AAA10B
€336.57
J2D8AAA10B
€236.09
J2D8AAA10C
€315.10
J2D8AB20B
€210.02
Electrical data
Contact form: - - - - - - - - NO - -
Current consumption: bei 12 V max. 18 mA bei 12 V max. 18 mA bei 12 V max. 18 mA max. 15 mA max. 15 mA bei 12 V max. 18 mA bei 12 V max. 18 mA bei 12 V max. 18 mA - - -
EMC emission (Norm): DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 - - -
EMC immunity (Norm): DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895 - - -
Load resistance al 30V max.: 1250 Ohm 1250 Ohm 1250 Ohm - - - - - - - -
Load resistance at 10V max.: 250 Ohm 250 Ohm 250 Ohm - - - - - - - -
Load resistance min.: - - - 20000 Ohm 20000 Ohm 20000 Ohm 20000 Ohm 20000 Ohm - - -
Max. switching current: - - - - - - - - 0.3 A - -
Max. switching power: - - - - - - - - 10 VA - -
Max. switching power: - - - - - - - - 10 W - -
Max. switching voltage: - - - - - - - - 48 V DC - -
Operating voltage max.: 30 V DC 30 V DC 30 V DC 5.5 V DC 5.5 V DC 30 V DC 30 V DC 30 V DC - - -
Operating voltage min.: 10 V DC 10 V DC 10 V DC 4.5 V DC 4.5 V DC 10 V DC 10 V DC 10 V DC - - -
Output signal: analogue analogue analogue analogue analogue analogue analogue analogue - - -
Output signal - centre position/zero position: 12 mA 12 mA 12 mA - - - - - - - -
Output signal - centre position/zero position: - - - 2.5 V DC 2.5 V DC 2.5 V DC 2.5 V DC 2.5 V DC - - -
Output signal max.: 20 mA 20 mA 20 mA - - - - - - - -
Output signal max.: - - - 4.5 V DC 4.5 V DC 4.5 V DC 4.5 V DC 4.5 V DC - - -
Output signal min.: 4 mA 4 mA 4 mA - - - - - - - -
Output signal min.: - - - 0.5 V DC 0.5 V DC 0.5 V DC 0.5 V DC 0.5 V DC - - -
Polarity reversal protection: - - - - - -
Short-circuit resistance to GND: - - -
Short-circuit resistance to supply: - - -
Technology: Hall Hall Hall Hall Hall Hall Hall Hall Reed Reed Reed
Mechanical data
Actuation type: single axis single axis Crossgate multi axis multi axis multi axis multi axis Crossgate Crossgate Crossgate single axis
Deflection: ± 20 ° ± 20 ° ± 20 ° ± 20 ° ± 20 ° ± 20 ° ± 20 ° ± 20 ° ± 20 ° ± 20 ° ± 20 °
Max. lever load with specified lever length: 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N 70 mm/250 N
Service life, mechanical (Cycles): 1000000 1000000 1000000 1000000 1000000 1000000 1000000 1000000 1000000 1000000 1000000
Material information
Gaiter material: NBR 438.40 NBR 438.40 NBR 438.40 NBR 438.40 NBR 438.40 NBR 438.40 NBR 438.40 NBR 438.40 NBR 438.40 NBR 438.40 NBR 438.40
Housing material: PBT PBT PBT PBT PBT PBT PBT PBT PBT PBT PBT
Shaft material: 1.4305 1.4305 1.4305 1.4305 1.4305 1.4305 1.4305 1.4305 1.4305 1.4305 1.4305
Environmental conditions
Max. operating temperature: 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Max. storage temperature: 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Min. storage temperature: -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Operating temperature min.: -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C
Protection class, electronic: IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529
Installation
Installation: from below from below from below from below from below from below from below from below from below from below from below
Mounting type: screwed from above screwed from above screwed from above screwed from above screwed from above screwed from above screwed from above screwed from above screwed from above screwed from above screwed from above
Connection
Cable length: 0.3 m 0.3 m 0.3 m 0.3 m 0.3 m 0.3 m 0.3 m 0.3 m 0.3 m 0.3 m 0.3 m
Connector type: Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr. Mini-Fit Jr.
J2A1AA20A
€374.88
Electrical data
Contact form:
-
Current consumption:
bei 12 V max. 18 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance al 30V max.:
1250 Ohm
Load resistance at 10V max.:
250 Ohm
Load resistance min.:
-
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
30 V DC
Operating voltage min.:
10 V DC
Output signal:
analogue
Output signal - centre position/zero position:
12 mA
Output signal - centre position/zero position:
-
Output signal max.:
20 mA
Output signal max.:
-
Output signal min.:
4 mA
Output signal min.:
-
Polarity reversal protection:
-
Short-circuit resistance to GND:
-
Short-circuit resistance to supply:
-
Technology:
Hall
Mechanical data
Actuation type:
single axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2A1AA20B
€426.99
Electrical data
Contact form:
-
Current consumption:
bei 12 V max. 18 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance al 30V max.:
1250 Ohm
Load resistance at 10V max.:
250 Ohm
Load resistance min.:
-
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
30 V DC
Operating voltage min.:
10 V DC
Output signal:
analogue
Output signal - centre position/zero position:
12 mA
Output signal - centre position/zero position:
-
Output signal max.:
20 mA
Output signal max.:
-
Output signal min.:
4 mA
Output signal min.:
-
Polarity reversal protection:
-
Short-circuit resistance to GND:
-
Short-circuit resistance to supply:
-
Technology:
Hall
Mechanical data
Actuation type:
single axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2A1AAA10B
€507.87
Electrical data
Contact form:
-
Current consumption:
bei 12 V max. 18 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance al 30V max.:
1250 Ohm
Load resistance at 10V max.:
250 Ohm
Load resistance min.:
-
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
30 V DC
Operating voltage min.:
10 V DC
Output signal:
analogue
Output signal - centre position/zero position:
12 mA
Output signal - centre position/zero position:
-
Output signal max.:
20 mA
Output signal max.:
-
Output signal min.:
4 mA
Output signal min.:
-
Polarity reversal protection:
-
Short-circuit resistance to GND:
-
Short-circuit resistance to supply:
-
Technology:
Hall
Mechanical data
Actuation type:
Crossgate
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2A6AAA00B
€425.37
Electrical data
Contact form:
-
Current consumption:
max. 15 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance al 30V max.:
-
Load resistance at 10V max.:
-
Load resistance min.:
20000 Ohm
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
5.5 V DC
Operating voltage min.:
4.5 V DC
Output signal:
analogue
Output signal - centre position/zero position:
-
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
-
Output signal max.:
4.5 V DC
Output signal min.:
-
Output signal min.:
0.5 V DC
Polarity reversal protection:
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Hall
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2A6AAA00C
€529.56
Electrical data
Contact form:
-
Current consumption:
max. 15 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance al 30V max.:
-
Load resistance at 10V max.:
-
Load resistance min.:
20000 Ohm
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
5.5 V DC
Operating voltage min.:
4.5 V DC
Output signal:
analogue
Output signal - centre position/zero position:
-
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
-
Output signal max.:
4.5 V DC
Output signal min.:
-
Output signal min.:
0.5 V DC
Polarity reversal protection:
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Hall
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2A7AAA00B
€507.87
Electrical data
Contact form:
-
Current consumption:
bei 12 V max. 18 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance al 30V max.:
-
Load resistance at 10V max.:
-
Load resistance min.:
20000 Ohm
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
30 V DC
Operating voltage min.:
10 V DC
Output signal:
analogue
Output signal - centre position/zero position:
-
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
-
Output signal max.:
4.5 V DC
Output signal min.:
-
Output signal min.:
0.5 V DC
Polarity reversal protection:
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Hall
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2A7AAA00C
€612.09
Electrical data
Contact form:
-
Current consumption:
bei 12 V max. 18 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance al 30V max.:
-
Load resistance at 10V max.:
-
Load resistance min.:
20000 Ohm
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
30 V DC
Operating voltage min.:
10 V DC
Output signal:
analogue
Output signal - centre position/zero position:
-
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
-
Output signal max.:
4.5 V DC
Output signal min.:
-
Output signal min.:
0.5 V DC
Polarity reversal protection:
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Hall
Mechanical data
Actuation type:
multi axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2A7AAA10B
€507.90
Electrical data
Contact form:
-
Current consumption:
bei 12 V max. 18 mA
EMC emission (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):
DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance al 30V max.:
-
Load resistance at 10V max.:
-
Load resistance min.:
20000 Ohm
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
30 V DC
Operating voltage min.:
10 V DC
Output signal:
analogue
Output signal - centre position/zero position:
-
Output signal - centre position/zero position:
2.5 V DC
Output signal max.:
-
Output signal max.:
4.5 V DC
Output signal min.:
-
Output signal min.:
0.5 V DC
Polarity reversal protection:
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Hall
Mechanical data
Actuation type:
Crossgate
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2D8AAA10B
€356.28
Electrical data
Contact form:
NO
Current consumption:
-
EMC emission (Norm):
-
EMC immunity (Norm):
-
Load resistance al 30V max.:
-
Load resistance at 10V max.:
-
Load resistance min.:
-
Max. switching current:
0.3 A
Max. switching power:
10 VA
Max. switching power:
10 W
Max. switching voltage:
48 V DC
Operating voltage max.:
-
Operating voltage min.:
-
Output signal:
-
Output signal - centre position/zero position:
-
Output signal - centre position/zero position:
-
Output signal max.:
-
Output signal max.:
-
Output signal min.:
-
Output signal min.:
-
Polarity reversal protection:
-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Reed
Mechanical data
Actuation type:
Crossgate
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2D8AAA10C
€475.50
Electrical data
Contact form:
-
Current consumption:
-
EMC emission (Norm):
-
EMC immunity (Norm):
-
Load resistance al 30V max.:
-
Load resistance at 10V max.:
-
Load resistance min.:
-
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
-
Operating voltage min.:
-
Output signal:
-
Output signal - centre position/zero position:
-
Output signal - centre position/zero position:
-
Output signal max.:
-
Output signal max.:
-
Output signal min.:
-
Output signal min.:
-
Polarity reversal protection:
-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Reed
Mechanical data
Actuation type:
Crossgate
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.
J2D8AB20B
€316.93
Electrical data
Contact form:
-
Current consumption:
-
EMC emission (Norm):
-
EMC immunity (Norm):
-
Load resistance al 30V max.:
-
Load resistance at 10V max.:
-
Load resistance min.:
-
Max. switching current:
-
Max. switching power:
-
Max. switching power:
-
Max. switching voltage:
-
Operating voltage max.:
-
Operating voltage min.:
-
Output signal:
-
Output signal - centre position/zero position:
-
Output signal - centre position/zero position:
-
Output signal max.:
-
Output signal max.:
-
Output signal min.:
-
Output signal min.:
-
Polarity reversal protection:
-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:
Reed
Mechanical data
Actuation type:
single axis
Deflection:
± 20 °
Max. lever load with specified lever length:
70 mm/250 N
Service life, mechanical (Cycles):
1000000
Material information
Gaiter material:
NBR 438.40
Housing material:
PBT
Shaft material:
1.4305
Environmental conditions
Max. operating temperature:
85 °C
Max. storage temperature:
85 °C
Min. storage temperature:
-40 °C
Operating temperature min.:
-25 °C
Protection class, electronic:
IP67 DIN EN 60529
Installation
Installation:
from below
Mounting type:
screwed from above
Connection
Cable length:
0.3 m
Connector type:
Mini-Fit Jr.

Documents and Downloads

Instructions
Instruction for use
5.5 MB
download
megaphone-light Your opinion counts

We use cookies

Our website uses cookies, which help us to improve our website, to offer the best possible service and to enable an optimal customer experience. you can manage your settings. By clicking on "Accept" you consent to your cookies being used for this purpose. You can find more information on this in our Privacy Policy as well as in Imprint. If you do not agree to this, you can refuse the use of cookies here.
