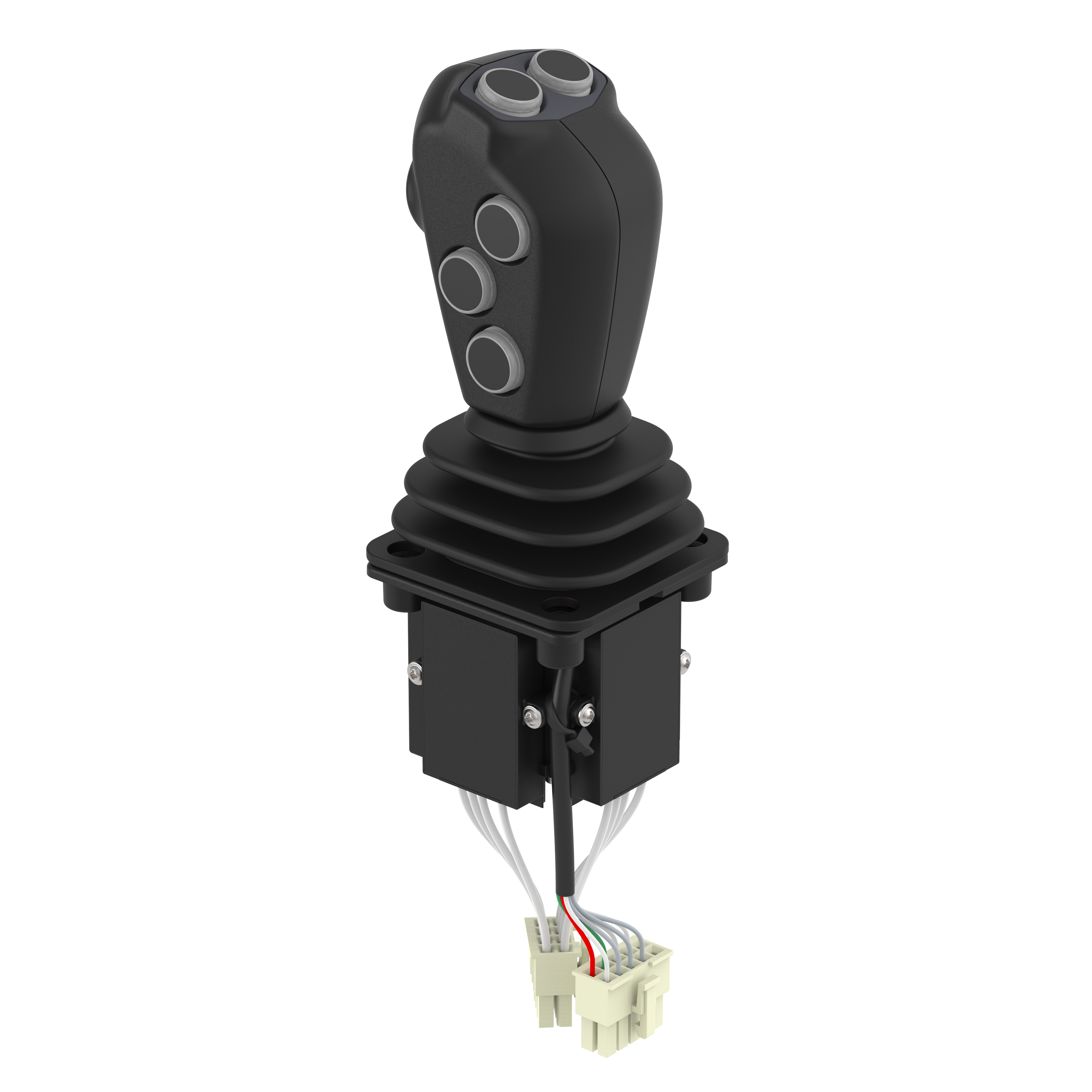

Joystick J2, NSEW, X-t,Y-t Handle 6BR

per item €763.59

available (4 pcs.), ships within 1-3 days

Quantity	Price
from 6 pcs.	€725.41 - 5 %
from 12 pcs.	€671.01 - 12 %
from 24 pcs.	€603.90 - 21 %
from 48 pcs.	€543.51 - 29 %
from 96 pcs.	€489.16 - 36 %

Choose variant:

Create offer

available (4 pcs.), ships within 1-3 days

Country of origin	D
Item weight	0.3 kg
Customs tariff number	85371098

Technical Data

	J2COK00GE0003H €857.96	J2COK00GE0004H €910.31	J2H6K00GE0001R €711.25	J2H6K00GE0002R €763.59	J2H6K10GE0001R €763.59
Electrical data
Baud rate:	250 kBit/s	250 kBit/s	-	-	-
Bus terminating resistor:			-	-	-
Current consumption:	< 120 mA	< 120 mA	max. 15 mA	max. 15 mA	max. 15 mA
EMC emission (Norm):	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
EMC immunity (Norm):	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895	DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895
Load resistance min.:	-	-	20000 Ohm	20000 Ohm	20000 Ohm
Node ID / Source Address:	0x11	0x11	-	-	-
Operating voltage max.:	36 V DC	36 V DC	5.5 V DC	5.5 V DC	5.5 V DC
Operating voltage min.:	9 V DC	9 V DC	4.5 V DC	4.5 V DC	4.5 V DC
Output signal:	-	-	analogue	analogue	analogue
Output signal - centre position/zero position:	-	-	2.5 V DC	2.5 V DC	2.5 V DC
Output signal max.:	-	-	4.5 V DC	4.5 V DC	4.5 V DC
Output signal min.:	-	-	0.5 V DC	0.5 V DC	0.5 V DC
Polarity reversal protection:
Protocol:	CANopen	CANopen	-	-	-
Short-circuit resistance to GND:
Short-circuit resistance to supply:
Technology:	Hall	Hall	-	-	-
Transmitting cycle:	100 ms	100 ms	-	-	-
Mechanical data
Actuation type:	multi axis	multi axis	multi axis	multi axis	Crossgate
Deflection:	± 20 °	± 20 °	± 20 °	± 20 °	± 20 °
Max. lever load with specified lever length:	70 mm/250 N	70 mm/250 N	70 mm/250 N	70 mm/250 N	70 mm/250 N
Service life, mechanical (Cycles):	1000000	1000000	1000000	1000000	1000000
Material information
Gaiter material:	VQM 45	VQM 45	VQM 45	VQM 45	VQM 45
Shaft material:	1.4305	1.4305	1.4305	1.4305	1.4305
Environmental conditions
Max. operating temperature:	85 °C	85 °C	85 °C	85 °C	85 °C
Max. storage temperature:	85 °C	85 °C	85 °C	85 °C	85 °C
Min. storage temperature:	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Operating temperature min.:	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Installation
Installation:	from below	from below	from below	from below	from below
Mounting type:	screwed from above	screwed from above	screwed from above	screwed from above	screwed from above
Connection
Cable length:	0.3 m	0.3 m	0.3 m	0.3 m	0.3 m
Cable type:	CAN Kabel	CAN Kabel	Lify-t	Lify-t	Lify-t
Connector type:	DEUTSCH DTM04	DEUTSCH DTM04	Mini-Fit Jr.	Mini-Fit Jr.	Mini-Fit Jr.

J2COK00GE0003H

€1,294.71

Electrical data

Baud rate:

250 kBit/s

Bus terminating resistor:

Current consumption:

< 120 mA

EMC emission (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

EMC immunity (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

Load resistance min.:

Node ID / Source Address:

Operating voltage max.:

36 V DC

Operating voltage min.:

9 V DC

Output signal:

Output signal - centre position/zero position:

Output signal max.:

Output signal min.:

Polarity reversal protection:

Protocol:

CANopen

Short-circuit resistance to GND:

Short-circuit resistance to supply:

Technology:

Transmitting cycle:

100 ms

Mechanical data

Actuation type:

multi axis

Deflection:

± 20 °

Max. lever load with specified lever length:

70 mm/250 N

Service life, mechanical (Cycles):

1000000

Material information

Gaiter material:

VQM 45

Shaft material:

1.4305

Environmental conditions

Max. operating temperature:

85 °C

Max. storage temperature:

85 °C

Min. storage temperature:

-40 °C

Operating temperature min.:

-25 °C

Installation

Installation:

from below

Mounting type:

screwed from above

Connection

Cable length:

0.3 m

Cable type:

CAN Kabel

Connector type:

DEUTSCH DTM04

J2COK00GE0004H

€1,373.70

Electrical data

Baud rate:

250 kBit/s

Bus terminating resistor:

Current consumption:

< 120 mA

EMC emission (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

EMC immunity (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

Load resistance min.:

Node ID / Source Address:

Operating voltage max.:

36 V DC

Operating voltage min.:

9 V DC

Output signal:

Output signal - centre position/zero position:

Output signal max.:

Output signal min.:

Polarity reversal protection:

Protocol:

CANopen

Short-circuit resistance to GND:

Short-circuit resistance to supply:

Technology:

Transmitting cycle:

100 ms

Mechanical data

Actuation type:

multi axis

Deflection:

± 20 °

Max. lever load with specified lever length:

70 mm/250 N

Service life, mechanical (Cycles):

1000000

Material information

Gaiter material:

VQM 45

Shaft material:

1.4305

Environmental conditions

Max. operating temperature:

85 °C

Max. storage temperature:

85 °C

Min. storage temperature:

-40 °C

Operating temperature min.:

-25 °C

Installation

Installation:

from below

Mounting type:

screwed from above

Connection

Cable length:

0.3 m

Cable type:

CAN Kabel

Connector type:

DEUTSCH DTM04

J2H6K00GE0001R

€1,073.31

Electrical data

Baud rate:

Bus terminating resistor:

Current consumption:

max. 15 mA

EMC emission (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

EMC immunity (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

Load resistance min.:

20000 Ohm

Node ID / Source Address:

Operating voltage max.:

5.5 V DC

Operating voltage min.:

4.5 V DC

Output signal:

analogue

Output signal - centre position/zero position:

2.5 V DC

Output signal max.:

4.5 V DC

Output signal min.:

0.5 V DC

Polarity reversal protection:

Protocol:

Short-circuit resistance to GND:

Short-circuit resistance to supply:

Technology:

Transmitting cycle:

Mechanical data

Actuation type:

multi axis

Deflection:

± 20 °

Max. lever load with specified lever length:

70 mm/250 N

Service life, mechanical (Cycles):

1000000

Material information

Gaiter material:

VQM 45

Shaft material:

1.4305

Environmental conditions

Max. operating temperature:

85 °C

Max. storage temperature:

85 °C

Min. storage temperature:

-40 °C

Operating temperature min.:

-25 °C

Installation

Installation:

from below

Mounting type:

screwed from above

Connection

Cable length:

0.3 m

Cable type:

Lify-t

Connector type:

Mini-Fit Jr.

J2H6K00GE0002R

€1,152.30

Electrical data

Baud rate:

Bus terminating resistor:

Current consumption:

max. 15 mA

EMC emission (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

EMC immunity (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

Load resistance min.:

20000 Ohm

Node ID / Source Address:

Operating voltage max.:

5.5 V DC

Operating voltage min.:

4.5 V DC

Output signal:

analogue

Output signal - centre position/zero position:

2.5 V DC

Output signal max.:

4.5 V DC

Output signal min.:

0.5 V DC

Polarity reversal protection:

Protocol:

Short-circuit resistance to GND:

Short-circuit resistance to supply:

Technology:

Transmitting cycle:

Mechanical data

Actuation type:

multi axis

Deflection:

± 20 °

Max. lever load with specified lever length:

70 mm/250 N

Service life, mechanical (Cycles):

1000000

Material information

Gaiter material:

VQM 45

Shaft material:

1.4305

Environmental conditions

Max. operating temperature:

85 °C

Max. storage temperature:

85 °C

Min. storage temperature:

-40 °C

Operating temperature min.:

-25 °C

Installation

Installation:

from below

Mounting type:

screwed from above

Connection

Cable length:

0.3 m

Cable type:

Lify-t

Connector type:

Mini-Fit Jr.

J2H6K10GE0001R

€1,152.30

Electrical data

Baud rate:

Bus terminating resistor:

Current consumption:

max. 15 mA

EMC emission (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

EMC immunity (Norm):

DIN EN 13309, DIN EN ISO 14982, ISO 13766, DIN EN 12895

Load resistance min.:

20000 Ohm

Node ID / Source Address:

Operating voltage max.:

5.5 V DC

Operating voltage min.:

4.5 V DC

Output signal:

analogue

Output signal - centre position/zero position:

2.5 V DC

Output signal max.:

4.5 V DC

Output signal min.:

0.5 V DC

Polarity reversal protection:

Protocol:

Short-circuit resistance to GND:

Short-circuit resistance to supply:

Technology:

Transmitting cycle:

Mechanical data

Actuation type:

Crossgate

Deflection:

± 20 °

Max. lever load with specified lever length:

70 mm/250 N

Service life, mechanical (Cycles):

1000000

Material information

Gaiter material:

VQM 45

Shaft material:

1.4305

Environmental conditions

Max. operating temperature:

85 °C

Max. storage temperature:

85 °C

Min. storage temperature:

-40 °C

Operating temperature min.:

-25 °C

Installation

Installation:

from below

Mounting type:

screwed from above

Connection

Cable length:

0.3 m

Cable type:

Lify-t

Connector type:

Mini-Fit Jr.
