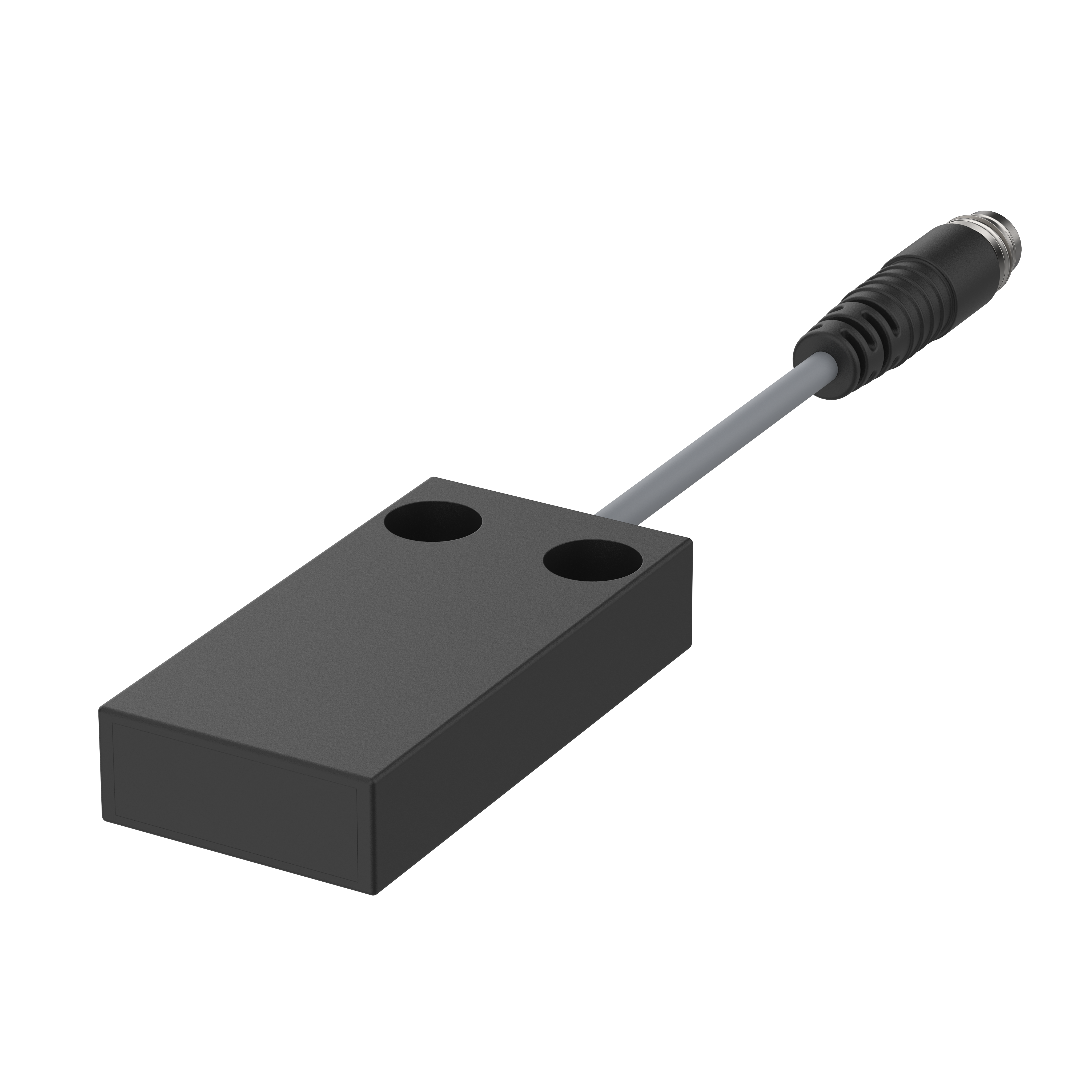

Safety sensor - 114262A01 - magnetically actuated -N.O./N.O., Pigtail 3-wire M8

per item €84.03

Prices excl. VAT plus shipping costs

available (9 pcs.), ships within 1-3 days

Quantity Price
from 25 pcs. €75.63 - 10 %
from 50 pcs. €67.22 - 20 %
from 100 pcs. €58.82 - 30 %

Choose variant:

Create offer

available (9 pcs.), ships within 1-3 days

Product information
Perfect monitoring and fastest response. Malfunction? Is registered immediately!

elobau offers a comprehensive range of magnetic and electronic safety sensors for monitoring movable guards.
Protective doors, hoods or covers can be safely monitored with the non-contact and thus wear-free sensor technology. Requirements for robustness, tightness and small size are met without exception. elobau has developed safety sensors in stainless steel especially for monitoring safety doors on food processing machines. Due to their resistance to cleaning agents and temperature, these sensors are ideally suited for use in hygienic and wet areas.
Features
  • Cubic and cylindrical designs
  • Metal and plastic designs
  • Versions for increased temperature range
  • Variants/versions for increased switching distance
  • Available with ETL/CSA approval
  • Protection class up to IP69K
  • Concealed installation possible
Technical Data
114262A01
€84.03
114270
€78.69
114270A0D
€79.35
114570
€84.87
114V62A0D
€79.35
Electrical data
Actuation: see technical drawing front front front front
Assured switch-off distance (Sar): - 19 mm 19 mm 22 mm 15 mm
Assured switching distance (Sao): - 7 mm 7 mm 4 mm 7 mm
Contact form: NO/NO NO/NC NO/NC NO/NC/NO (Kontrollkontakt) NO/NO
LED display: - No No No No
Max. switching current: 0.1 A 0.1 A 0.1 A 0.1 A 0.1 A
Max. switching power: 3 W 3 W 3 W 3 W 3 W
Max. switching voltage: 28.8 V DC 28.8 V DC 28.8 V DC 28.8 V DC 28.8 V DC
Min. switching voltage: 19.2 V DC 19.2 V DC 19.2 V DC 19.2 V DC 19.2 V DC
Minimum switching distance (S0 min): 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm
Pollution degree: - 3 3 3 3
Protection class: - III III III III
Series resistor: 22 Ohm 22 Ohm 22 Ohm 22 Ohm 22 Ohm
Switching frequency: - 5 Hz 5 Hz 5 Hz 5 Hz
Switching principle: magnetic magnetic magnetic magnetic magnetic
Technology: Reed Reed Reed Reed Reed
Safety-related characteristics
B10d acc. to EN ISO 13849-1: 20000000 20000000 20000000 20000000 20000000
Coding acc. to EN ISO 14119: Low Low Low Low Low
Mission time in years: - 20 a 20 a 20 a 20 a
Structure acc. to EN ISO 13849-1: Two-channel Two-channel Two-channel Two-channel Two-channel
Type acc. to EN ISO 14119: 4 4 4 4 4
Mechanical data
Detent present:
Dimensions: 50x25x10 25 x 50 x 10 mm 50 x 25 x 10 mm 50 x 25 x 10 mm 50 x 25 x 10 mm
Housing design: rectangular rectangular rectangular rectangular rectangular
cannot be mounted flush:
Material information
Cable material: - PVC - PVC -
Housing colour: schwarz schwarz schwarz schwarz schwarz
Housing material: PBT PBT PBT PBT PBT
Environmental conditions
Max. cable temperature range, fixed installation: 70 °C 70 °C - 105 °C 70 °C
Max. cable temperature range, moving: 70 °C 70 °C - 105 °C 70 °C
Max. operating temperature: 75 °C 75 °C 75 °C 75 °C 75 °C
Max. storage temperature: 75 °C 75 °C 75 °C 75 °C 75 °C
Min. cable temperature range, fixed installation: 25 °C 25 °C - -30 °C 25 °C
Min. cable temperature range, moving: 5 °C 5 °C - -10 °C 5 °C
Min. storage temperature: -25 °C -25 °C -25 °C -25 °C -25 °C
Operating temperature min.: -25 °C -25 °C -25 °C -25 °C -25 °C
Protection class: IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529 IP67 DIN EN 60529
Protection class, connector: IP67 DIN EN 60529 - IP67 DIN EN 60529 (screwed) - IP65 DIN EN 60529 (plugged) IP67 DIN EN 60529 (geschraubt) - IP65 DIN EN 60529 (gesteckt) - IP67 DIN EN 60529 (screwed) - IP65 DIN EN 60529 (plugged) IP67 DIN EN 60529 (geschraubt) - IP65 DIN EN 60529 (gesteckt)
Shock resistance (Norm): - 30g / 11ms 30g / 11ms 30g / 11ms 30g / 11ms
Vibration resistance (Norm): 10 - 55 Hz 10 - 55Hz 10 - 55Hz 10 - 55Hz 10 - 55Hz
Installation
Installation: arbitrary arbitrary arbitrary arbitrary arbitrary
Mounting type: screwed from above screwed screwed screwed screwed
Weight: 47 g 47 g 22 g - 47 g
Connection
Cable colour: grau grau - - grau
Cable length: - 1 m - 1 m -
Cable type: LIYY 3x0,25 LIYY 4x0,25 - - LIYY 4x0,25
Connector type: M8x1 - 3 polig - M8x1 - 4 polig - M8x1 - 4 polig
Number of strands: 3 4 - 6 -
Wire cross section: 0.25 mm^2 0.25 mm^2 - 0.14 mm^2 -
Approvals
CE label:
Certified in accordance with: ETL ETL ETL - ETL
Operating data
Possible actuators: 30427532 / 30427502 30427532 30427532 30427532 30427532
114262A01
€84.03
Electrical data
Actuation:
see technical drawing
Assured switch-off distance (Sar):
-
Assured switching distance (Sao):
-
Contact form:
NO/NO
LED display:
-
Max. switching current:
0.1 A
Max. switching power:
3 W
Max. switching voltage:
28.8 V DC
Min. switching voltage:
19.2 V DC
Minimum switching distance (S0 min):
0.5 mm
Pollution degree:
-
Protection class:
-
Series resistor:
22 Ohm
Switching frequency:
-
Switching principle:
magnetic
Technology:
Reed
Safety-related characteristics
B10d acc. to EN ISO 13849-1:
20000000
Coding acc. to EN ISO 14119:
Low
Mission time in years:
-
Structure acc. to EN ISO 13849-1:
Two-channel
Type acc. to EN ISO 14119:
4
Mechanical data
Detent present:
Dimensions:
50x25x10
Housing design:
rectangular
cannot be mounted flush:
Material information
Cable material:
-
Housing colour:
schwarz
Housing material:
PBT
Environmental conditions
Max. cable temperature range, fixed installation:
70 °C
Max. cable temperature range, moving:
70 °C
Max. operating temperature:
75 °C
Max. storage temperature:
75 °C
Min. cable temperature range, fixed installation:
25 °C
Min. cable temperature range, moving:
5 °C
Min. storage temperature:
-25 °C
Operating temperature min.:
-25 °C
Protection class:
IP67 DIN EN 60529
Protection class, connector:
IP67 DIN EN 60529
Shock resistance (Norm):
-
Vibration resistance (Norm):
10 - 55 Hz
Installation
Installation:
arbitrary
Mounting type:
screwed from above
Weight:
47 g
Connection
Cable colour:
grau
Cable length:
-
Cable type:
LIYY 3x0,25
Connector type:
M8x1 - 3 polig
Number of strands:
3
Wire cross section:
0.25 mm^2
Approvals
CE label:
Certified in accordance with:
ETL
Operating data
Possible actuators:
30427532 / 30427502
114270
€78.69
Electrical data
Actuation:
front
Assured switch-off distance (Sar):
19 mm
Assured switching distance (Sao):
7 mm
Contact form:
NO/NC
LED display:
No
Max. switching current:
0.1 A
Max. switching power:
3 W
Max. switching voltage:
28.8 V DC
Min. switching voltage:
19.2 V DC
Minimum switching distance (S0 min):
0.5 mm
Pollution degree:
3
Protection class:
III
Series resistor:
22 Ohm
Switching frequency:
5 Hz
Switching principle:
magnetic
Technology:
Reed
Safety-related characteristics
B10d acc. to EN ISO 13849-1:
20000000
Coding acc. to EN ISO 14119:
Low
Mission time in years:
20 a
Structure acc. to EN ISO 13849-1:
Two-channel
Type acc. to EN ISO 14119:
4
Mechanical data
Detent present:
Dimensions:
25 x 50 x 10 mm
Housing design:
rectangular
cannot be mounted flush:
Material information
Cable material:
PVC
Housing colour:
schwarz
Housing material:
PBT
Environmental conditions
Max. cable temperature range, fixed installation:
70 °C
Max. cable temperature range, moving:
70 °C
Max. operating temperature:
75 °C
Max. storage temperature:
75 °C
Min. cable temperature range, fixed installation:
25 °C
Min. cable temperature range, moving:
5 °C
Min. storage temperature:
-25 °C
Operating temperature min.:
-25 °C
Protection class:
IP67 DIN EN 60529
Protection class, connector:
-
Shock resistance (Norm):
30g / 11ms
Vibration resistance (Norm):
10 - 55Hz
Installation
Installation:
arbitrary
Mounting type:
screwed
Weight:
47 g
Connection
Cable colour:
grau
Cable length:
1 m
Cable type:
LIYY 4x0,25
Connector type:
-
Number of strands:
4
Wire cross section:
0.25 mm^2
Approvals
CE label:
Certified in accordance with:
ETL
Operating data
Possible actuators:
30427532
114270A0D
€79.35
Electrical data
Actuation:
front
Assured switch-off distance (Sar):
19 mm
Assured switching distance (Sao):
7 mm
Contact form:
NO/NC
LED display:
No
Max. switching current:
0.1 A
Max. switching power:
3 W
Max. switching voltage:
28.8 V DC
Min. switching voltage:
19.2 V DC
Minimum switching distance (S0 min):
0.5 mm
Pollution degree:
3
Protection class:
III
Series resistor:
22 Ohm
Switching frequency:
5 Hz
Switching principle:
magnetic
Technology:
Reed
Safety-related characteristics
B10d acc. to EN ISO 13849-1:
20000000
Coding acc. to EN ISO 14119:
Low
Mission time in years:
20 a
Structure acc. to EN ISO 13849-1:
Two-channel
Type acc. to EN ISO 14119:
4
Mechanical data
Detent present:
Dimensions:
50 x 25 x 10 mm
Housing design:
rectangular
cannot be mounted flush:
Material information
Cable material:
-
Housing colour:
schwarz
Housing material:
PBT
Environmental conditions
Max. cable temperature range, fixed installation:
-
Max. cable temperature range, moving:
-
Max. operating temperature:
75 °C
Max. storage temperature:
75 °C
Min. cable temperature range, fixed installation:
-
Min. cable temperature range, moving:
-
Min. storage temperature:
-25 °C
Operating temperature min.:
-25 °C
Protection class:
IP67 DIN EN 60529
Protection class, connector:
IP67 DIN EN 60529 (screwed) - IP65 DIN EN 60529 (plugged) IP67 DIN EN 60529 (geschraubt) - IP65 DIN EN 60529 (gesteckt)
Shock resistance (Norm):
30g / 11ms
Vibration resistance (Norm):
10 - 55Hz
Installation
Installation:
arbitrary
Mounting type:
screwed
Weight:
22 g
Connection
Cable colour:
-
Cable length:
-
Cable type:
-
Connector type:
M8x1 - 4 polig
Number of strands:
-
Wire cross section:
-
Approvals
CE label:
Certified in accordance with:
ETL
Operating data
Possible actuators:
30427532
114570
€84.87
Electrical data
Actuation:
front
Assured switch-off distance (Sar):
22 mm
Assured switching distance (Sao):
4 mm
Contact form:
NO/NC/NO (Kontrollkontakt)
LED display:
No
Max. switching current:
0.1 A
Max. switching power:
3 W
Max. switching voltage:
28.8 V DC
Min. switching voltage:
19.2 V DC
Minimum switching distance (S0 min):
0.5 mm
Pollution degree:
3
Protection class:
III
Series resistor:
22 Ohm
Switching frequency:
5 Hz
Switching principle:
magnetic
Technology:
Reed
Safety-related characteristics
B10d acc. to EN ISO 13849-1:
20000000
Coding acc. to EN ISO 14119:
Low
Mission time in years:
20 a
Structure acc. to EN ISO 13849-1:
Two-channel
Type acc. to EN ISO 14119:
4
Mechanical data
Detent present:
Dimensions:
50 x 25 x 10 mm
Housing design:
rectangular
cannot be mounted flush:
Material information
Cable material:
PVC
Housing colour:
schwarz
Housing material:
PBT
Environmental conditions
Max. cable temperature range, fixed installation:
105 °C
Max. cable temperature range, moving:
105 °C
Max. operating temperature:
75 °C
Max. storage temperature:
75 °C
Min. cable temperature range, fixed installation:
-30 °C
Min. cable temperature range, moving:
-10 °C
Min. storage temperature:
-25 °C
Operating temperature min.:
-25 °C
Protection class:
IP67 DIN EN 60529
Protection class, connector:
-
Shock resistance (Norm):
30g / 11ms
Vibration resistance (Norm):
10 - 55Hz
Installation
Installation:
arbitrary
Mounting type:
screwed
Weight:
-
Connection
Cable colour:
-
Cable length:
1 m
Cable type:
-
Connector type:
-
Number of strands:
6
Wire cross section:
0.14 mm^2
Approvals
CE label:
Certified in accordance with:
-
Operating data
Possible actuators:
30427532
114V62A0D
€79.35
Electrical data
Actuation:
front
Assured switch-off distance (Sar):
15 mm
Assured switching distance (Sao):
7 mm
Contact form:
NO/NO
LED display:
No
Max. switching current:
0.1 A
Max. switching power:
3 W
Max. switching voltage:
28.8 V DC
Min. switching voltage:
19.2 V DC
Minimum switching distance (S0 min):
0.5 mm
Pollution degree:
3
Protection class:
III
Series resistor:
22 Ohm
Switching frequency:
5 Hz
Switching principle:
magnetic
Technology:
Reed
Safety-related characteristics
B10d acc. to EN ISO 13849-1:
20000000
Coding acc. to EN ISO 14119:
Low
Mission time in years:
20 a
Structure acc. to EN ISO 13849-1:
Two-channel
Type acc. to EN ISO 14119:
4
Mechanical data
Detent present:
Dimensions:
50 x 25 x 10 mm
Housing design:
rectangular
cannot be mounted flush:
Material information
Cable material:
-
Housing colour:
schwarz
Housing material:
PBT
Environmental conditions
Max. cable temperature range, fixed installation:
70 °C
Max. cable temperature range, moving:
70 °C
Max. operating temperature:
75 °C
Max. storage temperature:
75 °C
Min. cable temperature range, fixed installation:
25 °C
Min. cable temperature range, moving:
5 °C
Min. storage temperature:
-25 °C
Operating temperature min.:
-25 °C
Protection class:
IP67 DIN EN 60529
Protection class, connector:
IP67 DIN EN 60529 (screwed) - IP65 DIN EN 60529 (plugged) IP67 DIN EN 60529 (geschraubt) - IP65 DIN EN 60529 (gesteckt)
Shock resistance (Norm):
30g / 11ms
Vibration resistance (Norm):
10 - 55Hz
Installation
Installation:
arbitrary
Mounting type:
screwed
Weight:
47 g
Connection
Cable colour:
grau
Cable length:
-
Cable type:
LIYY 4x0,25
Connector type:
M8x1 - 4 polig
Number of strands:
-
Wire cross section:
-
Approvals
CE label:
Certified in accordance with:
ETL
Operating data
Possible actuators:
30427532

Documents and Downloads

Instructions
Instruction for use
857 KB
download
megaphone-light Your opinion counts

We use cookies

Our website uses cookies, which help us to improve our website, to offer the best possible service and to enable an optimal customer experience. you can manage your settings. By clicking on "Accept" you consent to your cookies being used for this purpose. You can find more information on this in our Privacy Policy as well as in Imprint. If you do not agree to this, you can refuse the use of cookies here.
